Repair
Repair Price: $ 708.00
Purchase
CSL Part Number: 84891

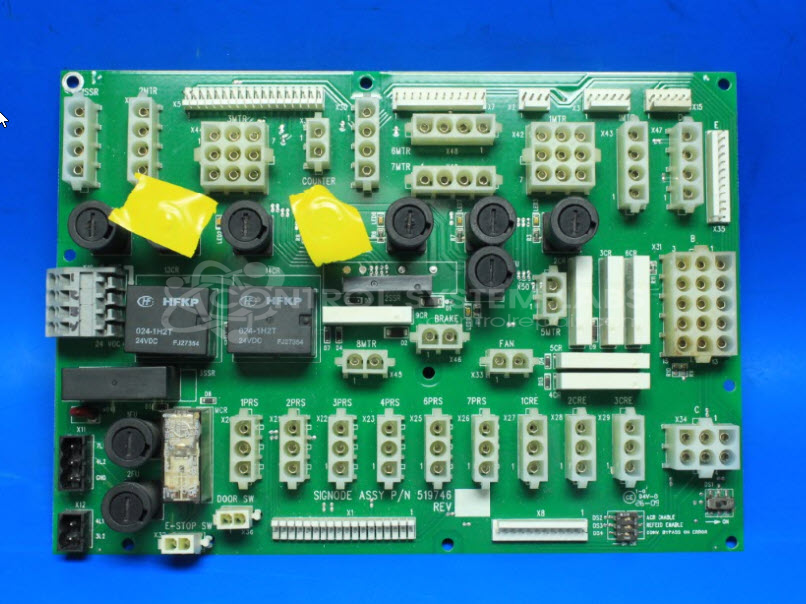

Product Overview: The Signode 519746 is an interconnection board designed for industrial strapping equipment, specifically used in the LBX2330USP strapper model. It manages power distribution and relay control functions, incorporating multiple fuses, SPDT relays (24VDC coil), and protection circuits. The board controls automatic cycle reset (ACR) operations and includes LEDs for status indication, with connections routed through multiple connectors for system integration.
Category: Control Board
Manufacturer: Signode
Manufacturer Part Number: 519746
Common Failures
This product, a strapping machine model, has occasionally been reported with burnt relay components.
Repair Approach
Three relays that control critical machine functions were replaced as part of the service performed on this unit. No visible damage or faults were detected in these components at the time of evaluation.
Testing & Quality
Component-level testing was performed, including assessment of fuses, relay responses, LEDs, diodes, resistors, and switches. All components tested were found operational with no contact bounce and no visible board damage. A full system-level test was not conducted. Testing was performed at the module level consistent with CSL repair capabilities.
Service and repair your broken Signode part
We can repair your Signode model 519746 in our facility. Let our skilled technicians get your Signode back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
