Repair
Repair Price: $ 592.00
Purchase
CSL Part Number: 38087

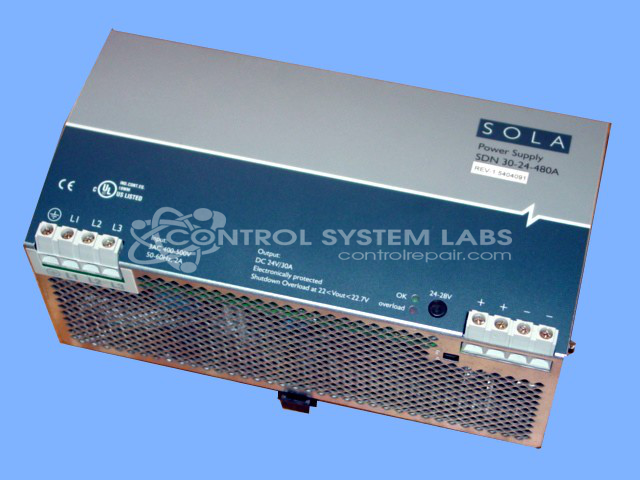

Product Overview: The Sola Electric SDN30-24-480A is a 24VDC, 30A DIN rail-mounted switching power supply from the SDN Series. It accepts 480VAC three-phase input and provides regulated 24VDC output for industrial control systems, PLCs, sensors, and actuators. This unit is designed for panel mounting on standard 35mm DIN rail and features overload and short-circuit protection. Commonly used in factory automation, material handling systems, and process control applications requiring reliable DC power distribution.
Category: Power Supply
Manufacturer: Sola Electric
Manufacturer Synonyms: SOLAHD, EMERSON
Manufacturer Part Number: SDN30-24-480A
Series: SDN Series Power Supply
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
Some units have shown issues with the power supply, including lack of DC output. Internal assembly variations within the same model code have been observed, which can affect repair feasibility.
Repair Approach
We perform diagnostic testing to evaluate power supply function and component condition. Repair feasibility depends on the specific assembly configuration and parts availability. In some cases, units may be found Beyond Economic Repair if required components are unavailable or if the assembly configuration cannot be serviced with available parts.
Service and repair your broken Sola Electric part
We can repair your Sola Electric model SDN30-24-480A in our facility. Let our skilled technicians get your Sola Electric back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
