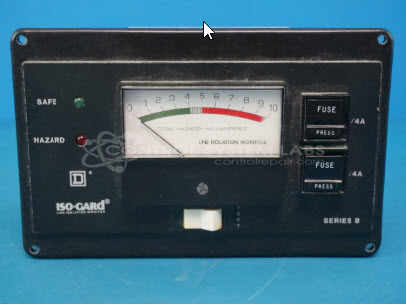

Square D 63010-705-61 Iso-Gard Line Isolation Monitor B, 120V, 5 mA

Repair

Repair Price: $ 1,332.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/101575/image_1920?unique=614d7fc
  • Condition

Purchase Price: $ 0.00 $ 0.00 1332.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 81228
Product Overview: A line isolation monitor that continuously measures total hazard current in ungrounded power systems, triggering an alarm when leakage approaches unsafe levels. Rated for 120V with a 5 mA trip threshold, it is used in isolated power panels for hospital operating rooms and other critical care environments. Includes a test button and visual indicators.
Category: Line Isolation Monitor
Manufacturer: Square D
Alternate Manufacturer Names: Isogard, Schneider Electric
Manufacturer Part Number: 63010-705-61
Series: Iso-Gard Monitors
Brand: Square D
Other Synonyms: Isogard, Schneider Electric

Why replace your Iso-Gard monitoriing system? Repair it at a fraction the cost!

Common Failures

Customers have reported issues with no alarm on high ground leakage, unknown problems, and non-functional test buttons.

Repair Approach

For the alarm failure, the relay was replaced, and the unit was calibrated following ISO procedures. An incident involved an unknown issue where all capacitors, switches, and transformers were replaced using parts from another unit. In a case where the test button was non-functional, a poor connection was found at a connector, which was subsequently replaced.

Testing & Quality

All units underwent thorough testing, including burn-in tests lasting one hour, to ensure reliability and performance after repairs.

Service and repair your broken Square D part


We can repair your Square D model 63010-705-61 in our facility. Let our skilled technicians get your Square D back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
