Repair
Repair Price: $ 1,268.00
Purchase
CSL Part Number: 86436

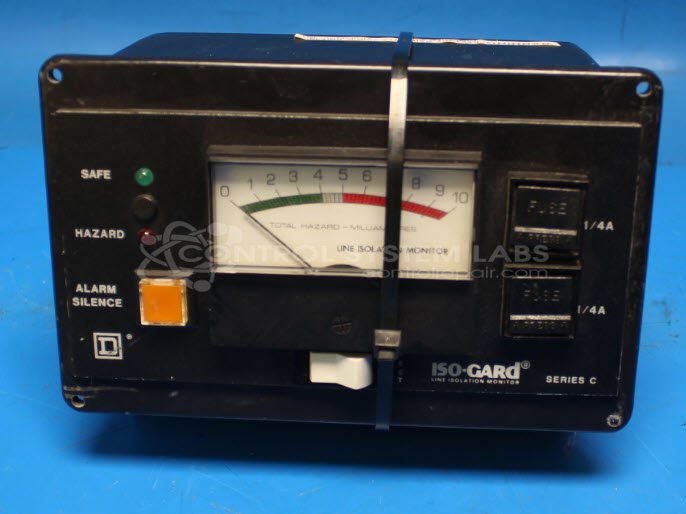

Product Overview: The Iso-Gard Line Isolation Monitor C (model 63010-800-61) is a 120V line isolation monitoring device manufactured by Square D (Schneider Electric) that continuously measures leakage current in isolated power systems, triggering an alarm at 5 mA. It is primarily used in hospital operating rooms, critical care areas, and other medical facilities where ungrounded electrical systems protect patients from electrical shock hazards. The monitor features a front-panel display for real-time current readings and includes test functionality to verify proper operation. This model is part of the Iso-Gard series and uses analog circuitry with calibration adjustments for precise leakage detection.
Category: Line Isolation Monitor
Manufacturer: Square D
Alternate Manufacturer Names: Isogard, Schneider Electric
Manufacturer Part Number: 63010-800-61
Series: Iso-Gard Monitors
Brand: Square D
Other Synonyms: Isogard, Schneider Electric
Why replace your Iso-Gard monitoriing system? Repair it at a fraction the cost!
Common Failures
This product has experienced issues with test functions not operating correctly, inaccurate readings, and calibration discrepancies. There have also been instances of missing components such as fuse holders. Additionally, corrosion and possible board damage have been observed, leading to some units being deemed Beyond Economic Repair.
Repair Approach
Repairs have involved replacing defective components, including capacitors and other electronic parts, and implementing preventative replacements to improve unit reliability. Calibration issues have been addressed by recalibrating units to meet specifications.
Testing & Quality
Units undergo comprehensive diagnostic testing using digital multimeters and specialized devices to verify that functions operate as intended. Testing phases include a burn-in test to further verify stability and performance. In some cases, prolonged testing has been performed to validate repairs and identify persistent faults.
Service and repair your broken Square D part
We can repair your Square D model 63010-800-61 in our facility. Let our skilled technicians get your Square D back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
