Repair
Repair Price: $ 1,160.00
Purchase
CSL Part Number: 69891

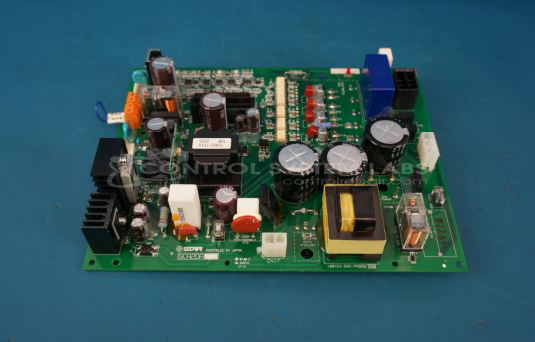

Product Overview: A power distribution board for industrial robotics, supplying regulated DC voltages including 12V and 24V to control and actuator circuits. It drives pneumatic SMC valves, chuck and vacuum/suction functions, and interfaces with the robot's CPU board in automated handling and molding equipment.
Category: Robotic
Manufacturer: Star Seiki
Manufacturer Synonyms: Star Automation
Manufacturer Part Number: SCA2D
Also Known As(AKA): SCA2D & SCA2M ON BDS
Please send in your Pendant along with both boards for repair.
Common Failures
Common issues reported include failure to switch the valve on both sides unless specific components are disconnected, lack of output where 12V power is present but 24V output is not achieved, and input-related problems.
Repair Approach
CSL evaluates each unit based on the reported symptoms and available information. In some cases, the reported issue may not be present during evaluation. When output issues are identified, procedures are implemented to activate and verify the +24VDC supply. Comprehensive testing of DC supplies, gate supplies, and signals is conducted to confirm proper operation. Repairs focus on verifying functionality and addressing any detectable faults before the unit is returned.
Testing & Quality
Each repaired unit undergoes testing to verify that DC supplies, gate supplies, and signals function as expected. When customer-specific configurations or components are provided, testing is conducted accordingly. Where reported symptoms cannot be reproduced during evaluation, CSL thoroughly investigates the unit to ensure quality standards are met.
Repair your broken Star Seiki part
We can repair your Star Seiki model SCA2D .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
