Repair
Repair Price: $ 1,120.00
Purchase
CSL Part Number: 81931

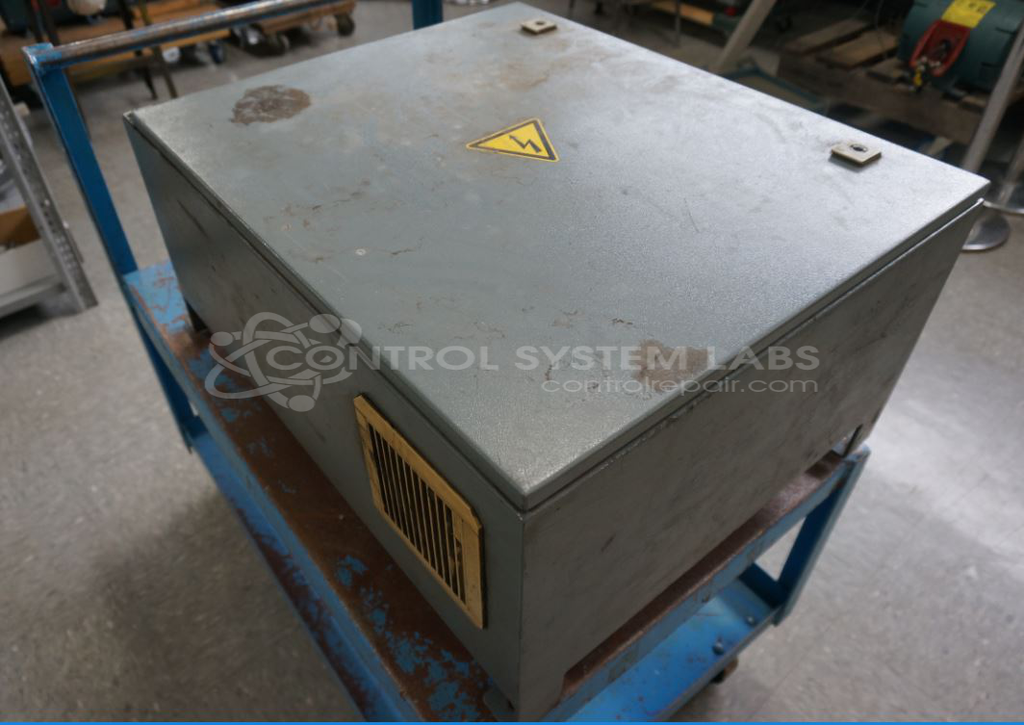

Product Overview: The Struckmeier FSV 5-045078-116-C/IP154 is a 460-volt, 95-amp AC motor drive designed for precise speed and torque control of three-phase induction motors in paper processing equipment. This IGBT-based drive features SCR input stages, multiple control transformers, encoder feedback capability via DB9 interface, and analog speed control inputs. It includes integrated cooling via heat sink and fan assemblies, gate firing boards for power semiconductor control, and terminal blocks for motor and control connections. Common applications include paper machine drives requiring closed-loop speed regulation.
Category: Motor Controls
Manufacturer: Struckmeier
Manufacturer Part Number: FSV 5-045078-116-C/IP154
Common Failures
Reported issues include units powering up with error codes, overheating related to transformer faults, and reduced air-flow from fan misalignment. Additional symptoms have included uneven current distribution across phases and dirt accumulation inside the cabinet.
Repair Approach
Repairs may involve cleaning and reassembly, replacement of defective transformers, and realignment of fan units to correct air flow. Diagnostic testing is used to identify faulty components such as capacitors and fans. In some cases, custom solutions like interface cables for encoder inputs have been implemented to address specific functionality concerns.
Testing & Quality
Units undergo testing, which may include burn-in tests with load and functionality checks of encoder and other controls. When repairs are successful, the unit is returned to serviceable condition. In some cases, challenges such as board arcing due to internal contamination or component limitations may require further evaluation before a repair quotation can be provided.
Service and repair your broken Struckmeier part
We can repair your Struckmeier model FSV 5-045078-116-C/IP154 in our facility. Let our skilled technicians get your Struckmeier back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
