Repair
Repair Price: $ 748.00
Purchase
CSL Part Number: 18638

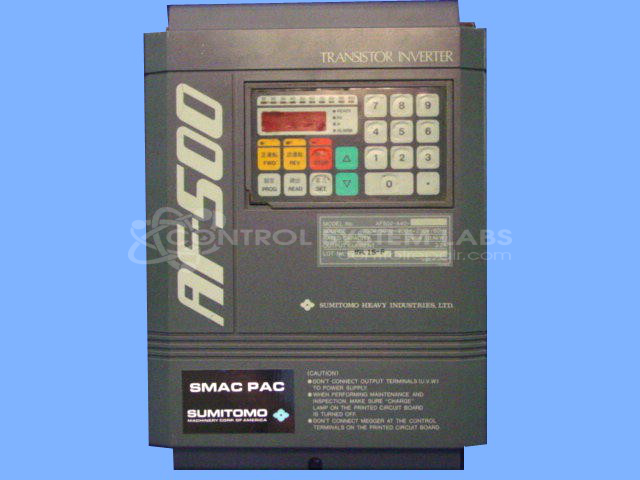

Product Overview: The Sumitomo Smac-Pac AF502-A40 is a 0.5 HP AC inverter designed for 230VAC applications. This variable frequency drive controls AC motor speed and torque by converting fixed-frequency AC power to variable-frequency output. It is commonly used in paper processing machinery and other industrial automation equipment requiring precise motor control. The compact design integrates power conversion circuitry, control logic, and protection features in a single package suitable for fractional horsepower motor applications.
Category: AC Motor Controls
Manufacturer: Sumitomo
Manufacturer Part Number: AF502-A40
Also Known As(AKA): SUMITOMO MACHINERY
Common Failures
This product is commonly reported to not power up. Potential causes may include defective components such as a MOSFET, power resistor, or SCR module. Corrosion has also been observed on boards submitted for repair.
Repair Approach
Repair may involve replacing defective components such as capacitors and resistors. In some cases, protective measures such as applying masking paint over exposed copper traces may be employed. Extensive damage or unavailable components may result in a unit being classified as Beyond Economic Repair (BER).
Testing & Quality
Initial diagnostic testing typically confirms reported symptoms. Repairs involve component-level inspection and testing using specialized diagnostic equipment. Post-repair testing may reveal additional issues that require further evaluation. Repair viability depends on the availability of replacement parts and the extent of damage found during evaluation.
Service and repair your broken Sumitomo part
We can repair your Sumitomo model AF502-A40 in our facility. Let our skilled technicians get your Sumitomo back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
