CSL Part Number: 114649

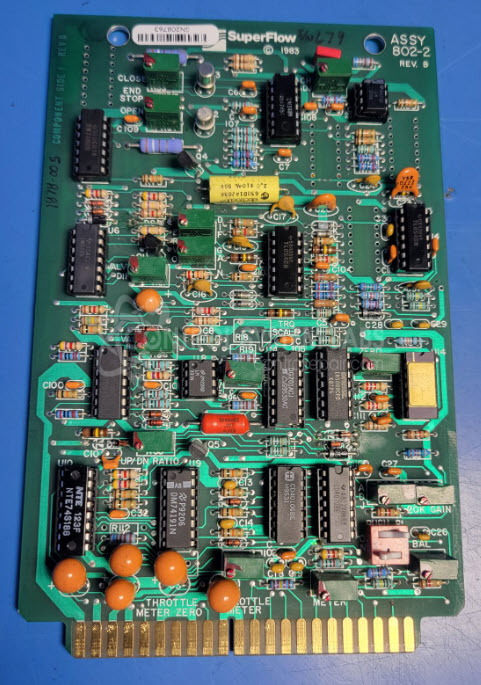

Product Overview: The SF-901 Control Board (SuperFlow part number 802-2) is the main control board for the SuperFlow SF-901 Engine Dynamometer system. It processes sensor inputs, manages control signals, and coordinates dynamometer operations during engine testing. The board contains multiple logic ICs and socketed components, with an edge connector interface for system communication. This assembly is critical for dyno control and data acquisition in automotive performance testing facilities, engine rebuilders, and research laboratories.
Category: Machine Control
Manufacturer: SuperFlow
Manufacturer Part Number: 802-2
Brand: SuperFlow SF-901
Also Known As(AKA): ASSY 802-2 Rev B
Found in a SuperFlow SF-901 Engine Dynamometer
Common Failures
This unit may exhibit erratic behavior after a period of use. This issue can worsen over time and may require removal, inspection, and reinsertion of the board to temporarily restore functionality.
Repair Approach
The repair process includes cleaning and reseating integrated circuits and cleaning edge connectors. This approach addresses potential issues such as loose components or oxidation on leads that may affect performance.
Testing & Quality
Initial testing indicated no significant electrical issues with the board. The unit passed basic functionality testing. However, complete system testing was not performed due to the complexity of external factors, including calibration points and input signals. This repair was performed on a Time and Materials basis and is not warrantied.
Limited Repair
The SuperFlow part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your SuperFlow part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
