Repair
Repair Price: $ 1,692.00
Purchase
CSL Part Number: 28399

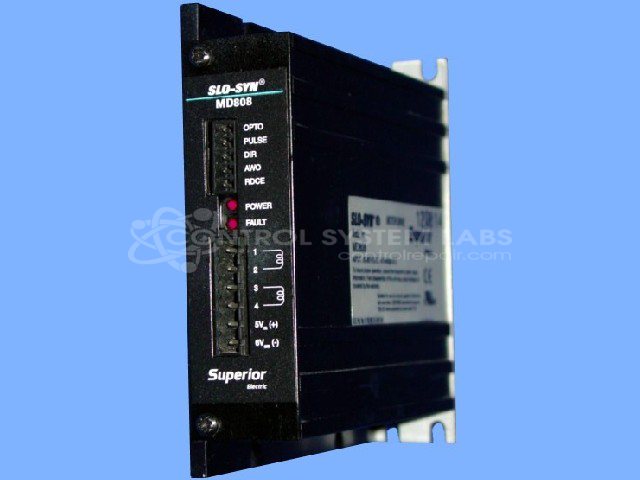

Product Overview: The Superior Electric MD808 is a DC stepper motor drive that accepts 24-75 VDC input power and delivers up to 4 amperes output current. It controls stepper motors through pulse and direction inputs, making it suitable for precise positioning and motion control in paper handling equipment and similar industrial applications. The drive features optically isolated inputs for noise immunity and configurable DIP switches for motor current and step resolution settings.
Category: DC Motor Controls
Manufacturer: Superior Electric
Alternate Manufacturer Names: Kollmorgan, Danaher
Manufacturer Part Number: MD808
Other Synonyms: Kollmorgan, Danaher
Common Failures
Common issues reported for this product include failure to update, delayed start-up, driving problems, and malfunctioning pulse inputs. Some units exhibit problems where they need to be turned on for extended periods before functioning properly. Defective optocouplers and weak opto supplies are frequent findings during evaluation, which may contribute to functionality issues such as delayed start-up or difficulty running motors effectively.
Repair Approach
Repairs may involve cleaning corrosion from board connectors and replacing defective components such as optocouplers. For issues not replicable during diagnostic testing, maintenance procedures may include checking capacitors, diodes, and MOSFETs, and resoldering connections where necessary. Preventive measures may also include testing and replacing weak opto supplies to support reliable operation.
Testing & Quality
Post-repair testing may include burn-in tests with motors to verify functionality and endurance under variable conditions. Tested components are expected to demonstrate consistent operation through our testing procedures.
Service and repair your broken Superior Electric part
We can repair your Superior Electric model MD808 in our facility. Let our skilled technicians get your Superior Electric back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
