Repair
Repair Price: $ 1,044.00
Purchase
CSL Part Number: 15899

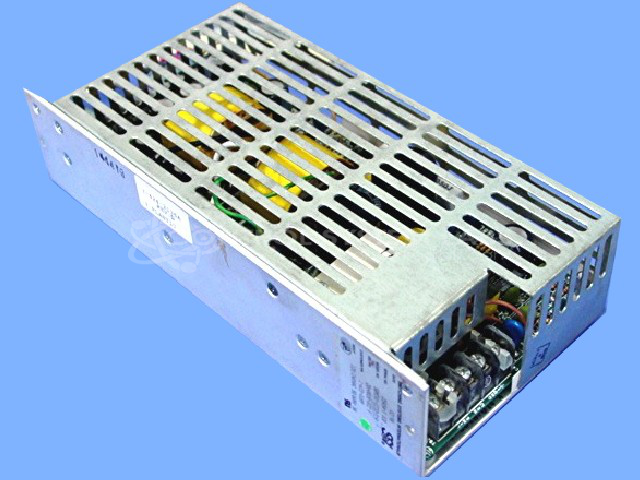

Product Overview: The SQM200-1222-5-A is a multiple output switching power supply from Switching Systems International's SQM Series. It provides +5V, +12V, and -12V outputs with a total capacity of 200 watts. This unit is commonly used in industrial control systems, paper processing equipment, and automation machinery where multiple voltage rails are required. The design uses a switching topology for efficient power conversion with electrolytic capacitor filtering on each output stage.
Category: Power Supply
Manufacturer: Switching Systems International
Manufacturer Synonyms: SSI
Manufacturer Part Number: SQM200-1222-5-A
Series: SQM Series
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
One of the issues we commonly observe with this product is the failure of the power supply system, such as the absence of 5V or +12/-12V outputs. This is often due to degraded electrolytic capacitors.
Repair Approach
Our typical repair involves replacing the electrolytic capacitors to address both failed components and components at risk of future failure. The board is also cleaned to remove any corrosion that may be present.
Testing & Quality
After repairs, the product undergoes burn-in testing with a load overnight. The final quality verification confirms that all systems are operational and meet our standards.
Service and repair your broken Switching Systems International part
We can repair your Switching Systems International model SQM200-1222-5-A in our facility. Let our skilled technicians get your Switching Systems International back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
