Repair
Repair Price: $ 1,068.00
Purchase
CSL Part Number: 85101

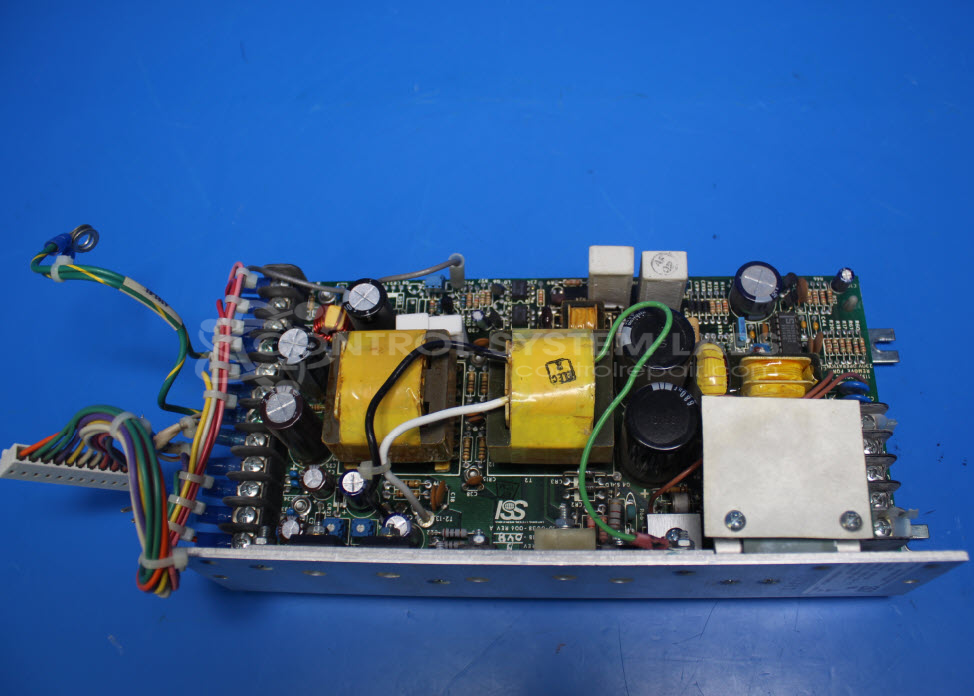

Product Overview: The SQM225-1433-2-A is a quad-output switching power supply from Switching Systems International's SQM Series. It provides four independent DC voltage rails: +5V, +24V, +15V, and -15V, suitable for powering industrial control systems, automation equipment, and mixed-logic circuits. Features include auto-ranging input (115/230 VAC) and power fail detection for system monitoring. This multi-rail design is commonly used in applications requiring multiple voltage levels from a single compact supply.
Category: Power Supply
Manufacturer: Switching Systems International
Manufacturer Synonyms: SSI
Manufacturer Part Number: SQM225-1433-2-A
Series: SQM Series
Also Known As(AKA): 20-0038-048 B
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
This product may experience issues with the power supply, including defective or deteriorated capacitors. Symptoms can include ripple in the voltage supplies, especially at +/- 15V, and abrupt shutdowns without error codes. Such issues may require capacitor replacement to restore functionality.
Repair Approach
The repair process typically involves diagnostic testing to identify problem voltages, followed by the replacement of faulty capacitors. Preventative maintenance may also be performed, including replacing capacitors before they fully fail. Additional steps can include checking capacitors with specialized equipment and applying thermal compound to heatsinks for improved thermal management.
Testing & Quality
Post-repair, the device undergoes a burn-in test with a load to simulate typical operation conditions. This includes testing of the voltage supplies to ensure they are within specifications. The units are tested at varying input voltages to verify reliable operation under different conditions. Successful repairs are confirmed through testing to ensure that electrical parameters meet the required standards.
Service and repair your broken Switching Systems International part
We can repair your Switching Systems International model SQM225-1433-2-A in our facility. Let our skilled technicians get your Switching Systems International back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
