Repair Price: $ 295.00
Purchase
CSL Part Number: 113548

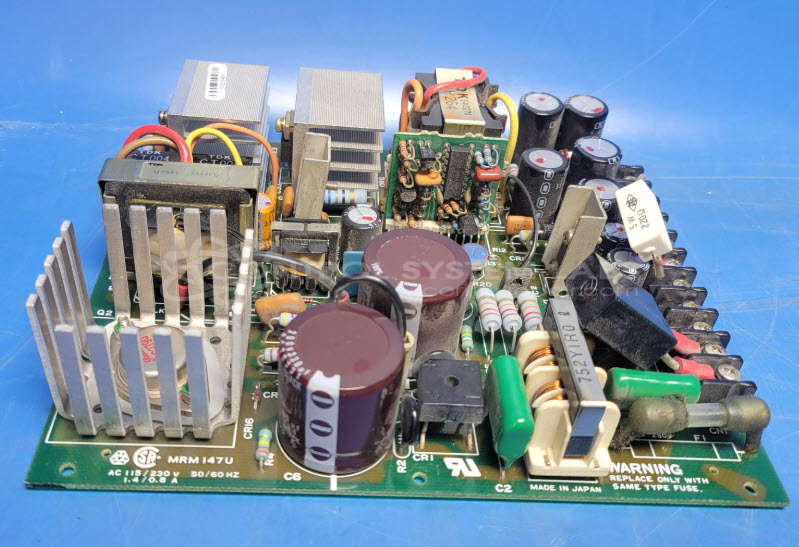

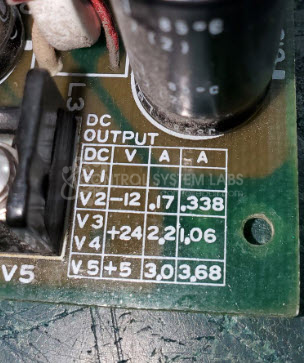

Product Overview: The TDK Lambda MRM147U (also known as 3EF8459-4) is a compact triple-output switching power supply designed for embedded systems and industrial control equipment. It accepts 115/230VAC 50/60Hz input and delivers three DC outputs: +5VDC at 3A, +24VDC at 2.2A, and -12VDC at 0.17A. This configuration is commonly used in applications requiring multiple voltage rails, such as programmable logic controllers, motor drives, and process control systems where logic, analog, and relay circuits must be powered simultaneously.
Category: Power Supply
Manufacturer: TDK
Manufacturer Part Number: MRM147U
Also Known As(AKA): 3EF8459-4
Common Failures
Common issues with this product include defective components, particularly electrolytic capacitors. These components may fail due to age, which can affect voltage supply and output performance.
Repair Approach
The repair process may involve replacing electrolytic capacitors and performing diagnostic testing to identify the root cause. Additional evaluation of circuit components may be necessary depending on the findings.
Testing & Quality
After repairs, the product undergoes testing, including a burn-in test with an active load on all outputs. This helps ensure the power supply functions correctly across its intended ranges.
Service and repair your broken TDK part
We can repair your TDK model MRM147U in our facility. Let our skilled technicians get your TDK back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
