Repair
Repair Price: $ 594.00
Purchase
CSL Part Number: 81116

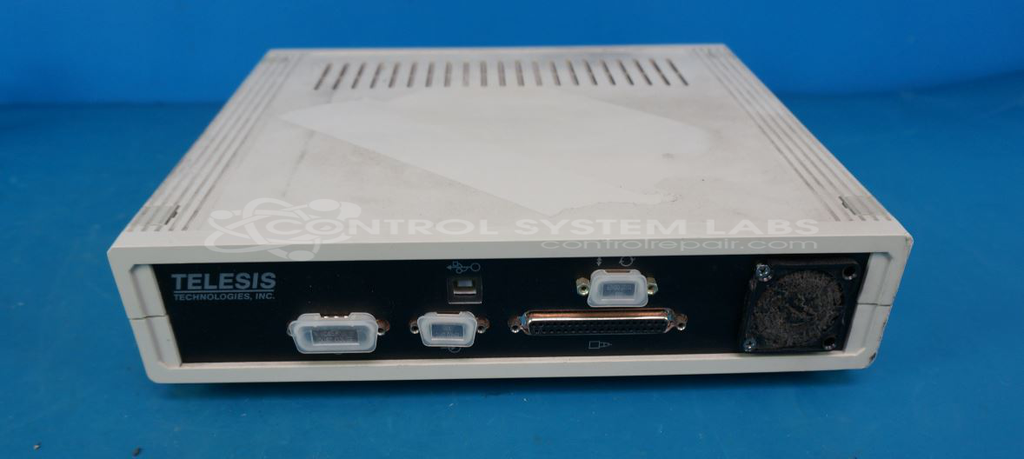

Product Overview: The Telesis TMC090 is a laser marking system controller that serves as the central control unit for automated laser marking and engraving operations. It manages laser parameters, coordinates motion control for multi-axis positioning systems (including Z-axis drives with limit switches), and interfaces with external equipment through auxiliary I/O ports. Commonly used in manufacturing environments for part identification, serialization, and product traceability applications, it features multiple power supply rails (5V, 3.3V, and high-voltage DC) to support laser operation and peripheral devices.
Category: Operator Interface
Manufacturer: Telesis
Manufacturer Part Number: TMC090
Common Failures
This Telesis TMC Laser Marking System Controller was received with reported issues involving the Aux1/Aux2 ports and Z drive limit switch operation. Upon evaluation, our technicians identified a damaged resistor and evidence of short circuit damage. Brittle plastic components showed physical wear.
Repair Approach
The repair included replacement of the damaged resistor. Following component replacement, diagnostic testing confirmed proper electrical connection and functionality, with stable voltage readings observed across the power supplies. We recommend periodic inspection of wiring and limit switches as part of routine maintenance.
Testing & Quality
Post-repair testing confirmed stable power supply outputs with minimal electrical noise. The fan operated as expected. Testing validated the repair work performed. The unit was returned as serviceable.
