Repair
Repair Price: $ 484.00
Purchase
CSL Part Number: 38980

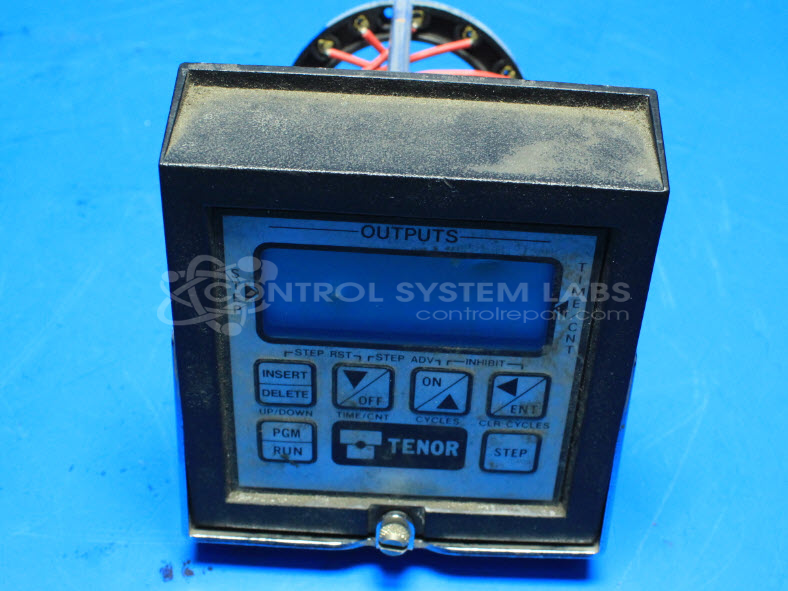

Product Overview: The Tenor Mini Sequencer (Model 765-8-1000) is a 100-step programmable time-step controller used in industrial automation and process control applications. It features eight relay outputs that can be sequenced through up to 100 programmable steps with adjustable timing intervals. Commonly found in parts washers, material handling systems, and process equipment requiring sequential control, the unit includes a digital display, front-panel programming buttons, and external count/inhibit inputs. It operates on 115/230VAC and uses internal SPST-NO relays for switching loads.
Category: Timer / Counter
Manufacturer: Tenor
Manufacturer Part Number: 765-8-1000
100 Step Sequencer, Time Step Controller, Marsh Bellofram, ATC
Common Failures
Common issues with this product include power-related problems such as the unit not turning on, intermittent power failures, and display malfunctions like blinking or a blank screen. These problems are often attributed to broken transformer leads, defective solder joints, and damaged connectors. Additionally, physical damage is a recurring cause for component failure.
Repair Approach
Repairs typically involve resoldering connections, replacing defective components like transformers, capacitors, and relay drivers, and ensuring the mechanical integrity of connections. In cases of physical damage, components may be secured with adhesive and cable ties for reinforcement. Repairs may include replacing connectors and repairing solder joints.
Testing & Quality
Repaired units undergo testing, which may include burn-in tests with load to verify performance. Outputs, buttons, and inputs are checked, and units are tested with standard programs to simulate operating conditions. Units that pass testing and final quality assessment are returned to service.
Service and repair your broken Tenor part
We can repair your Tenor model 765-8-1000 in our facility. Let our skilled technicians get your Tenor back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
