CSL Part Number: 106953

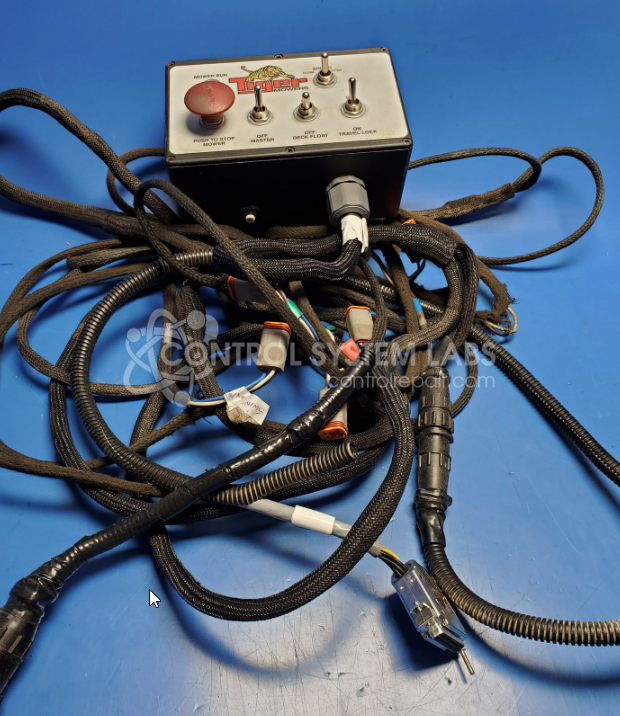

Product Overview: The Tiger Switch Box (part number 0651096) is a power control assembly used in Tiger Mowers commercial mowing equipment. It houses multiple switches and wiring connections that control electrical functions on the mower, such as blade engagement, ignition, and other operational systems. The unit features a woven wire harness and internal switching components that distribute power to various mower subsystems. It serves as a central electrical junction point, allowing operators to control key mower functions from the operator station.
Category: Power Controls
Manufacturer: Tiger Mowers
Manufacturer Part Number: 0651096
Please include machine information and wiring diagram manuals if you have it. We can not perform a complete systems test without having the machine here.
Common Failures
Exposed wiring in the harness may cause operational issues if contact occurs with other components.
Repair Approach
The repair process included insulating exposed wires with heat shrink tubing and securing the harness to restore proper protection and functionality.
Limited Repair
The Tiger Mowers part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Tiger Mowers part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
