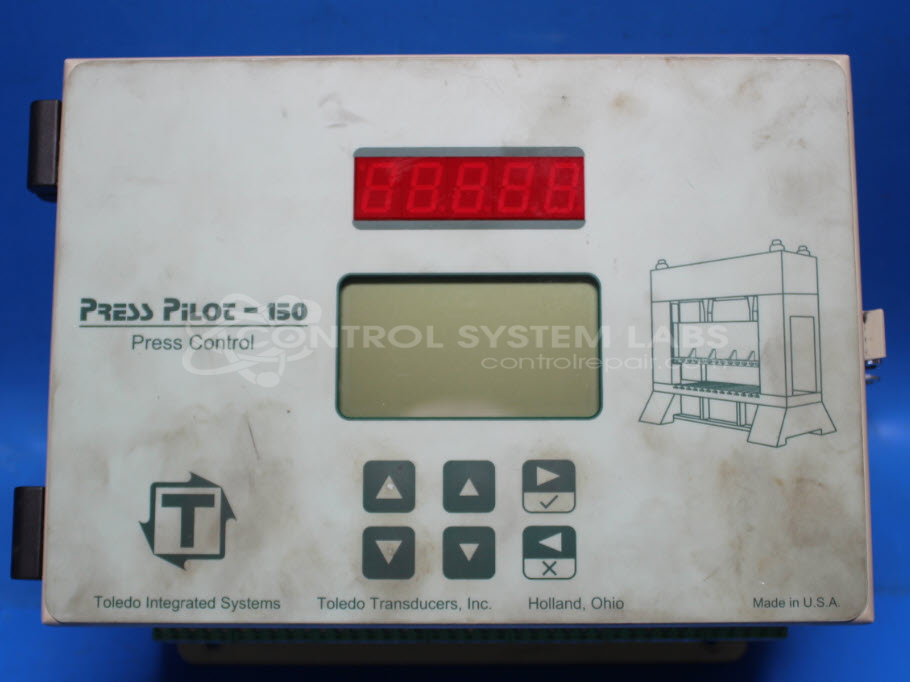

Product Overview: The Press Pilot-150 is a programmable press control system manufactured by Toledo Integrated Systems for monitoring and controlling mechanical press operations. It features dual displays (7-segment LED and LCD), multiple relay outputs for controlling press functions, and encoder inputs for tracking press stroke position and speed. The controller manages press timing, safety interlocks, and fault detection in stamping presses, punch presses, and similar industrial forming equipment. It includes onboard backup batteries for parameter retention, configurable I/O, and diagnostic capabilities for troubleshooting press malfunctions.
Category: Control Assembly
Manufacturer: Toledo Integrated Systems
Manufacturer Part Number: PP150-MUTE
Common Failures
Common issues reported include display not illuminating despite backlight function, screen going dark after operation, and failure to power on. Frequently identified causes include defective power supplies, discharged batteries, and faulty relays. Some units have exhibited incorrect display information or display failure when the unit reaches operating temperature.
Repair Approach
The repair process involves diagnostic testing to identify faulty components such as batteries and power supplies, followed by replacement as needed. In some cases, program setting adjustments are required to address connectivity errors. We verify that all connections and relays are functioning correctly.
Testing & Quality
Repaired units undergo power-on testing and functional verification. This includes testing alarms, I/O responses, and relay functionality. Units are subjected to burn-in tests to confirm operational stability. Testing is performed to verify that the unit operates within specifications before return to the customer.
