Repair
Repair Price: $ 624.00
Purchase
CSL Part Number: 101207

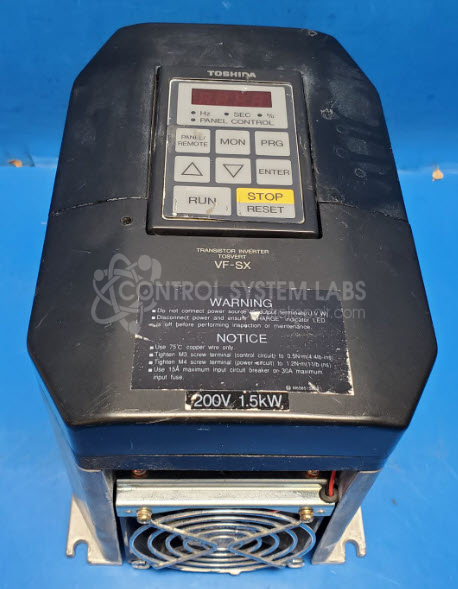

Product Overview: The Toshiba VF-SX Drive 208V 3Ph 1.5kW is an AC motor control inverter designed for dynamic industrial applications. Primarily used in variable frequency drives (VFDs), it accommodates three-phase motors providing efficient speed control and reduced energy consumption. This model supports a voltage range of 200-230V, outputting up to 6.5A, and is configured for applications requiring up to 3.7kW of power.
Category: AC Motor Controls
Manufacturer: Toshiba
Manufacturer Part Number: VFSX-2015UP1
Series: VF-SX VF-SXN TOSVERT INVERTER
Repairs are for the drive only. Please include the keypad if possible. If the keypad requires repair it will be quoted separately.
Common Failures
Units received for evaluation commonly exhibit symptoms such as no response from the inverter, failure to power on, or unexpected shutdowns during operation. Corrosion affecting capacitors and integrated circuits is frequently observed and may contribute to issues including overcurrent faults and circuit damage.
Repair Approach
Repairs typically involve replacing corroded or defective capacitors and other affected components. Cleaning procedures are performed when units show contamination from dirt or corrosion. When circuit board traces are damaged, repair work includes trace restoration and resoldering or replacement of components as needed.
Testing & Quality
Following repair, units are tested to verify functionality, including motor operation and control settings. Units must pass testing before being returned. Some units may present repair challenges due to complex conditions such as ROM-related issues, and may be evaluated for quotation or determined to be Beyond Economic Repair.
Service and repair your broken Toshiba part
We can repair your Toshiba model VFSX-2015UP1 in our facility. Let our skilled technicians get your Toshiba back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
