Repair Price: $ 1,704.00
Purchase
CSL Part Number: 17926

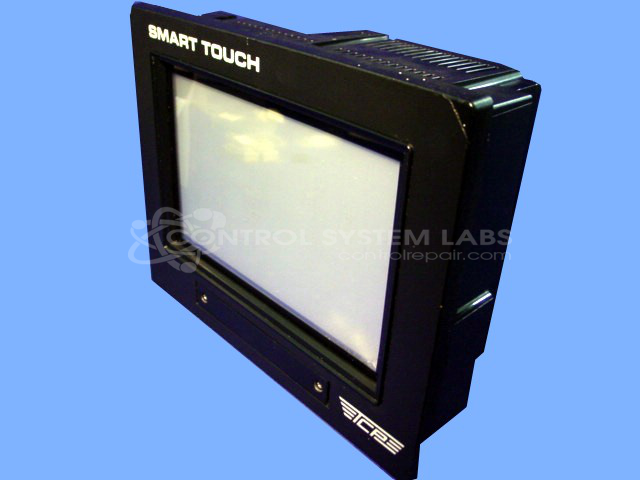

Product Overview: The HMI80100A2P Smart Touch Flat Panel by Total Control Products is an operator interface with an electro-luminescent display and integrated keypad. It provides visual feedback and manual input control for industrial automation systems. The unit features dual-voltage internal power conversion (5V, ±12V) to support both the display backlight and control circuitry. Commonly used in process control, packaging machinery, and manufacturing equipment where operators need to monitor status and input commands.
Category: Operator & Control Panels
Manufacturer: Total Control Products
Manufacturer Synonyms: GE Fanuc
Manufacturer Part Number: HMI80100A2P
Also Known As(AKA): TCP
Common Failures
Users have reported that the screen does not light up, although the keypad beeps and responds to input. The issue may be related to a power supply component.
Repair Approach
Our repair process typically involves replacing the affected power supply component to restore functionality to the screen.
Testing & Quality
Diagnostic testing is conducted using various testing devices, and repairs are burn-in tested under load for two hours. Post-repair functionality is verified to confirm that both the display and power supply are operating as expected.
Service and repair your broken Total Control Products part
We can repair your Total Control Products model HMI80100A2P in our facility. Let our skilled technicians get your Total Control Products back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
