CSL Part Number: 72271

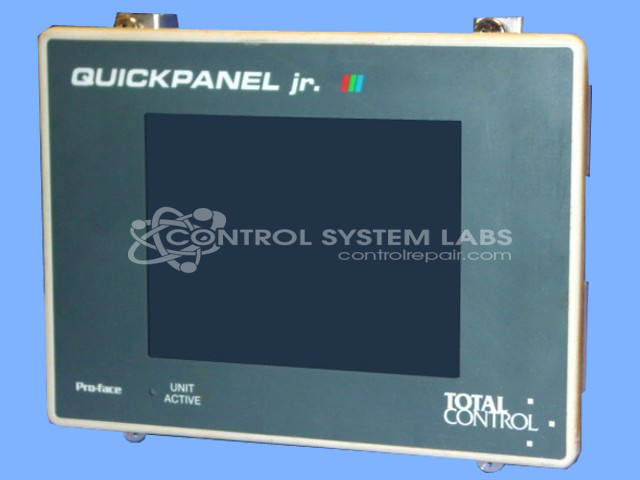

Product Overview: The Quickpanel Jr. 5 inch STD Color LCD is a compact operator interface panel manufactured by Total Control Products. It features a 5-inch color LCD display with integrated front touchscreen for machine control and monitoring applications. This panel serves as a human-machine interface (HMI) in industrial automation systems, allowing operators to view process data and input commands. The unit uses CCFL backlighting technology and is commonly found in manufacturing equipment, process control systems, and automated machinery requiring operator interaction.
Category: Operator & Control Panels
Manufacturer: Total Control Products
Manufacturer Synonyms: GE Fanuc
Manufacturer Part Number: QPJ2D100S2P SR A
Series: QuickPanel jr. Touch Screen
Also Known As(AKA): TCP
Common Failures
Common reported symptoms include dim or unreadable displays. These symptoms are often associated with backlight or power supply component degradation.
Repair Approach
Our evaluation may include inspection and replacement of the CCFL backlight assembly, electrolytic capacitors in the power supply, and LCD contrast supply components as needed. Repair work is performed based on findings during evaluation.
Testing & Quality
Repaired units are tested to verify display and touchpad control functionality. Testing includes extended bench testing and sleep mode operation to confirm proper function under typical conditions.
Service and repair your broken Total Control Products part
We can repair your Total Control Products model QPJ2D100S2P SR A in our facility. Let our skilled technicians get your Total Control Products back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
