Repair
Repair Price: $ 872.00
Purchase
CSL Part Number: 60869

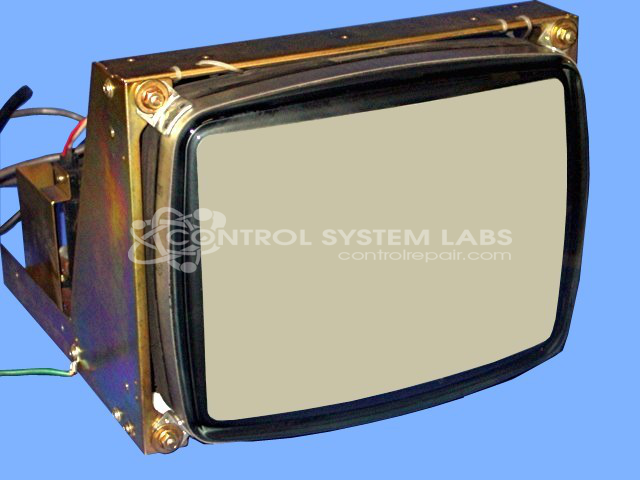

Product Overview: The Sharp 13-inch Color Monitor (TOYO AIQA8SMU22) is a CRT-based display used in industrial control systems and manufacturing equipment. It features a 13-inch diagonal cathode ray tube that generates color images for operator interfaces and process visualization. The unit operates at standard video frequencies including 25 kHz horizontal and 60 Hz vertical refresh rates, with typical resolution of 640x350 pixels. Common applications include legacy HMI systems, older CNC machine tools, and paper manufacturing control panels where CRT technology was originally specified.
Category: CRT Monitors
Manufacturer: TOYO
Manufacturer Part Number: AIQA8SMU22
Common Failures
Common failures for this product include non-functional displays and issues with display output. Historical repair records show that defective components such as solder joints, transformers, and capacitors have been observed. These problems typically manifest as a complete loss of display output or the unit not powering on.
Repair Approach
Repairs may involve resoldering connections at the power input circuit board and replacing defective components such as capacitors and driver transformers. Temporary measures may include cleaning and coating components with insulation materials to prevent further arcing and damage. In some cases, a lack of available replacement parts can render units unrepairable. We would be glad to review your specific item and provide a quotation before any repair work begins.
Testing & Quality
Repaired units undergo testing to ensure functionality. This includes a burn-in test and various diagnostic tests to assess operational status. Units that pass these tests are confirmed to function correctly. However, if a repair is deemed beyond economic repair due to unavailable parts or extensive damage, the unit may not proceed through all quality assurance tests.
Service and repair your broken TOYO part
We can repair your TOYO model AIQA8SMU22 in our facility. Let our skilled technicians get your TOYO back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
