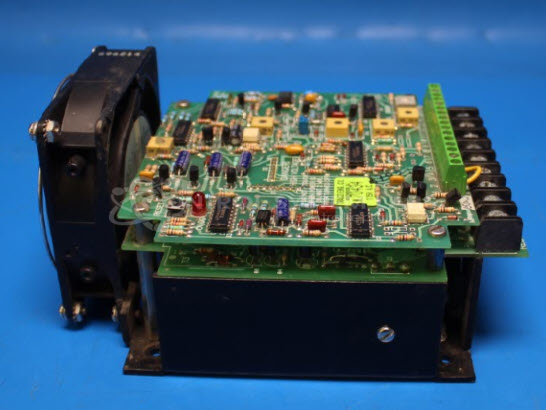

Traco MPW-15D-2 Motor Drive

Repair

Repair Price: $ 856.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/69433/image_1920?unique=5138dc7
  • Condition

Purchase Price: $ 0.00 $ 0.00 856.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 85818
Category: DC Motor Controls
Manufacturer: Traco
Manufacturer Synonyms: Traco Engineering, Solicon
Manufacturer Part Number: MPW-15D-2
Also Known As(AKA): MPW-150-2

Common Failures

Common issues reported for this drive include failure to operate above 300 RPM and protection resets when attempting higher speeds. The device may perform adequately below this threshold. Failures we have observed include an overheated and open brake resistor, an overheated and cracked diode, and electrolytic capacitors that were out of specification.

Repair Approach

The repair process typically involves cleaning the drive and replacing faulty components, which may include the brake resistor, diode, and electrolytic capacitors. Adjustments to components such as the TL084 IC, which interacts with the tachometer signal, may also be performed. After component replacement and adjustments, the drive is powered up and tested.

Testing & Quality

Post-repair, the drive is tested with a motor using a tachometer. The motor is operated in both directions, and parameters such as TACH, SIG, PROP GAIN, and CL are adjusted as needed. The drive is subjected to a burn-in period to evaluate reliability. Further adjustments with your specific motor setup may be required to achieve optimal performance.

Service and repair your broken Traco part


We can repair your Traco model MPW-15D-2 in our facility. Let our skilled technicians get your Traco back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
