Repair
Repair Price: $ 576.00
Purchase
CSL Part Number: 73224

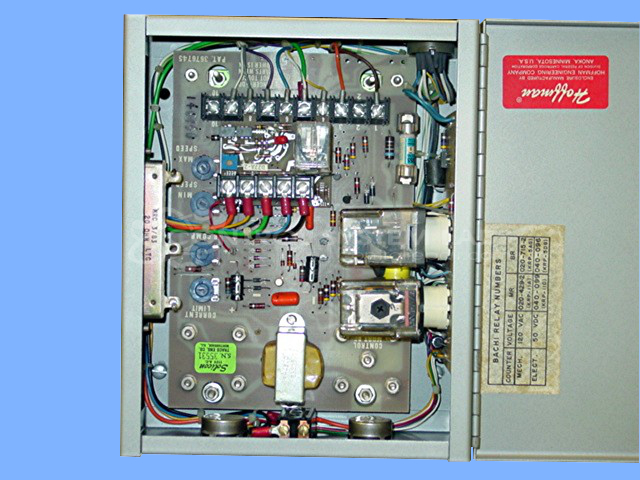

Product Overview: The TB5-5 is a DC motor controller manufactured by Traco under the Solicon brand, designed to control motor speed and braking in paper handling and converting equipment. This configuration includes an integrated Bachi relay card and Acell relay card for enhanced control functionality. It regulates both armature and field voltage to provide dual-speed operation (low and high speed settings) for DC motors, typically in applications requiring precise speed control and dynamic braking capabilities.
Category: DC Motor Controls
Manufacturer: Traco
Manufacturer Synonyms: Traco Engineering, Solicon
Manufacturer Part Number: TB5-5 W/72D30 & D77A-2
Brand: Solicon
Common Failures
Several common issues have been identified in this product. These include burnt components on the board, high equivalent series resistance in electrolytic capacitors, and open fuses. These failures often result in the product not operating as expected.
Repair Approach
The repair process typically involves replacing burnt or defective components. For instance, rectifiers and capacitors with high ESR may be replaced to restore functionality, and open fuses may be replaced to ensure proper electrical continuity. Cleaning is also performed as a standard procedure to maintain component integrity.
Testing & Quality
Post-repair, units undergo testing to verify functionality. The product is tested to confirm that controls operate correctly and that field voltage and armature voltage meet specified conditions.
Service and repair your broken Traco part
We can repair your Traco model TB5-5 W/72D30 & D77A-2 in our facility. Let our skilled technicians get your Traco back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
