Repair
Repair Price: $ 368.00
Purchase
CSL Part Number: 83104

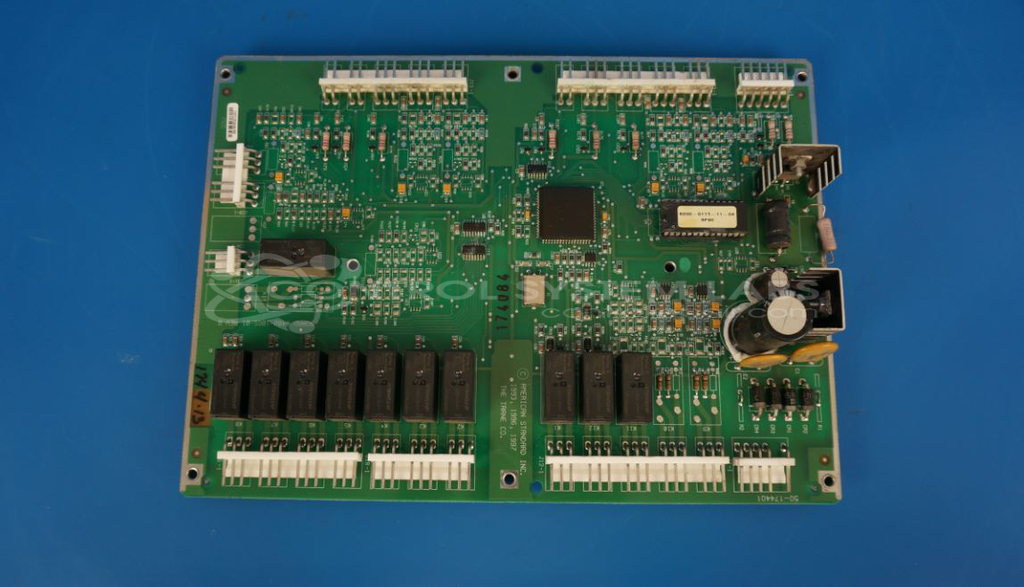

Product Overview: The Trane 6400-1065-01 Rev B is a control board used in Trane HVAC systems, specifically in commercial chillers and rooftop units. It manages system operations including temperature monitoring, alarm processing, and interface with multiple sensors. The board operates on 24VAC input with internal 5VDC power regulation, features EEPROM memory storage, and includes a processor with 7.5MHz oscillator for system control functions. Common applications include water-cooled and air-cooled chillers where it monitors parameters like water temperature and coordinates unit operation.
Category: HVAC
Manufacturer: Trane
Manufacturer Part Number: 6400-1065-01 Rev B
Common Failures
One recurring issue reported with this product is the control board triggering a low water temperature alarm, even when the sensor readings show correct resistance. This suggests potential control board anomalies that may require further investigation.
Repair Approach
The repair approach involves component-level diagnostics and limited power-up tests. The process includes checking capacitors and power supply integrity around the processors and applying necessary voltage inputs to internal power systems. Additionally, EEPROM information is downloaded and stored for analysis.
Testing & Quality
Diagnostic tests are conducted to verify component functionality. This includes powering the unit with 24VAC and conducting measurements. A burn-in test is also performed by powering the unit for two hours to observe stability. However, complete system tests are not possible due to the lack of a specialized testing fixture. Customers are advised that testing may be limited to component-level verification and that full operational validation cannot be guaranteed without equipment-level testing.
Service and repair your broken Trane part
We can repair your Trane model 6400-1065-01 Rev B in our facility. Let our skilled technicians get your Trane back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
