Repair
Repair Price: $ 524.00
Purchase
CSL Part Number: 83102

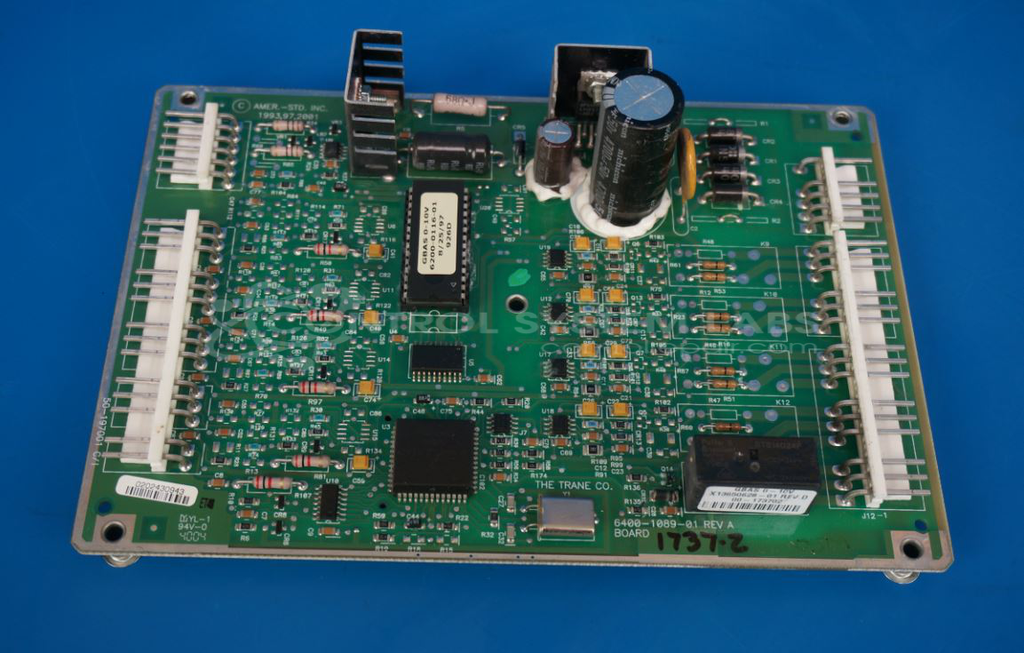

Product Overview: A microprocessor-based control board used in commercial HVAC chiller systems. It manages system operation through a BIOS-driven processor, onboard relays, and analog input modules, including 0-10VDC communication interfaces for monitoring and controlling chiller functions and reporting system alarms.
Category: HVAC
Manufacturer: Trane
Manufacturer Part Number: 6400-1089-01 Rev A
Also Known As(AKA): Trane p/n BRD01816 Tracer, Supersedes to BRD02189
Common Failures
This product has experienced issues related to corrosion, specifically under the BIOS chip, which can lead to operational failures such as communication errors. An example problem cited was a "GBAS 0/10VDC MODULE COMM FAIL" alarm in a Trane chiller, addressed by replacing the faulty board with a repaired unit.
Repair Approach
The primary repair method involves cleaning corrosion from beneath the BIOS chip. In some cases, socket replacements and additional cleaning are performed to restore functionality to the affected components.
Testing & Quality
Post-repair testing includes verifying the operation of the processor and conducting relay tests. Burn-in tests are performed, ranging from 30 minutes to one hour, to evaluate the reliability and stability of the repair. These procedures help ensure that the repaired product meets operational standards before it is returned to the customer.
Service and repair your broken Trane part
We can repair your Trane model 6400-1089-01 Rev A in our facility. Let our skilled technicians get your Trane back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
