Repair
Repair Price: $ 1,000.00
Purchase
CSL Part Number: 70293

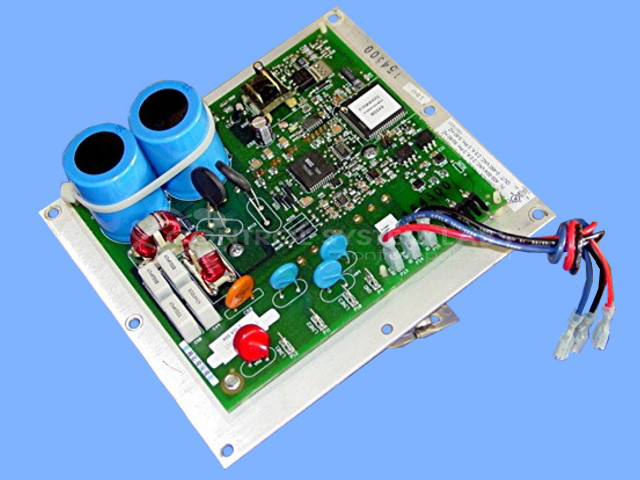

Product Overview: A variable frequency drive inverter board that controls condenser fan motor speed in HVAC and refrigeration systems. It regulates motor operation for cooling applications, supporting fractional horsepower motors at 480VAC and providing precise fan control for temperature management.
Category: Motor Controls
Manufacturer: Trane
Manufacturer Part Number: X13170220070
Series: Condenser Fan Inverter
Also Known As(AKA): VFD66HCB JOHNSON
Common Failures
This product has experienced failures including non-operational fans, control issues that prevent unit startup, and physical damage from overheated components. Overheating of capacitors and resistors has been observed, which may lead to damaged PCBs and component failure.
Repair Approach
Repairs typically involve verifying the problem, replacing failed capacitors and resistors, and securing startup resistors. In many cases, bleeder resistors and surface mount resistors are replaced, along with updates to low voltage electrolytic capacitors as needed. Extensive testing, including burn-in tests, is performed to verify proper functionality following repair.
Testing & Quality Assurance
After repairs, units are subjected to testing including connection to motors to verify operational status. Burn-in periods ranging from 1 to 4 hours are standard to evaluate reliability and performance. Units returning for warranty evaluation are carefully checked to verify reported issues before repair decisions are made. If a unit is determined to be Beyond Economic Repair (BER), it may be returned without repairs.
Service and repair your broken Trane part
We can repair your Trane model X13170220070 in our facility. Let our skilled technicians get your Trane back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
