CSL Part Number: 102946

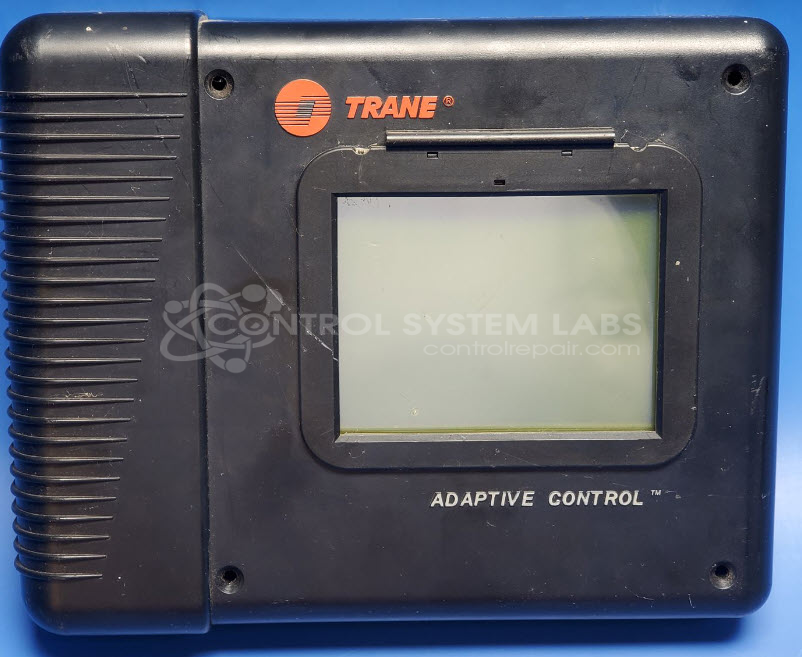

Product Overview: The Trane X13650827-07 Adaptive Control is an operator interface (HMI) used primarily in Trane chiller systems. It features a resistive touchscreen display that allows operators to monitor system status, adjust settings such as screen contrast, and navigate control menus. The unit communicates with chiller cabinets via serial connections and includes onboard memory supported by a CR2032 battery. Common configurations may vary, but the interface typically includes a main control board, LCD assembly with touchscreen overlay, and standard communication ports for integration with building HVAC control systems.
Category: Operator Interface
Manufacturer: Trane
Manufacturer Part Number: X13650827-07
Also Known As(AKA): MOD02092
If a replacement is ordered or if the unit has lost its program, requires programming by Trane, we cannot reprogram here.
Common Failures
Common issues reported include touchscreen functionality problems such as unresponsive touch inputs, incorrect touch registration, and physical damage to the screen. In some cases, screens have become difficult to read due to defective components or contaminant ingress causing damage.
Repair Approach
The repair process typically involves replacing the defective touchscreen and performing preventative maintenance such as replacing the memory battery and electrolytic capacitors. In cases of excessive component damage, repair may not be feasible, and replacement of the entire assembly may be recommended. Unit clean-up from contaminants is also part of the maintenance routine when required.
Testing & Quality
Following repair, devices are tested to verify functionality. Successful repairs restore touchscreen operation, including touch registration and menu navigation. Some units undergo additional burn-in testing to confirm reliability. Units that cannot pass testing due to excessive damage are not returned to service.
Limited Repair
The Trane part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Trane part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
