Unbranded Unknown Relay Board
Repair
Call for price
Purchase
CSL Part Number: 107950

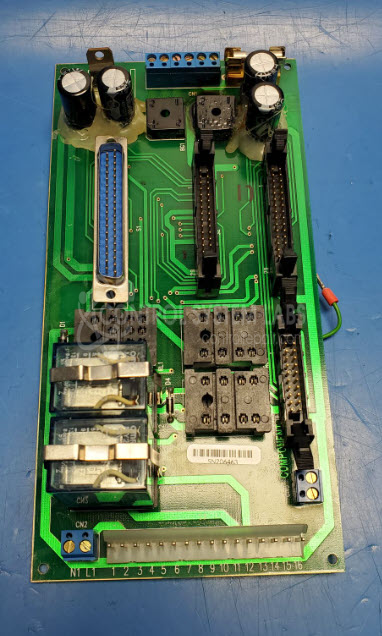

Product Overview: This relay board provides switching control for industrial equipment through multiple electromechanical relays. It features an onboard power supply with bridge rectifiers, voltage regulation (7812), and filter capacitors to convert AC input to regulated DC for relay operation. The board controls loads through relay contacts, commonly used in automation systems, motor control panels, and process control applications. This unbranded design uses standard KBPC-style bridge rectifiers and accommodates multiple relay configurations for flexible switching requirements.
Category: Relay Card
Manufacturer: Unbranded
Manufacturer Part Number: Unknown
Limited Repair
The Unbranded part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Unbranded part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
