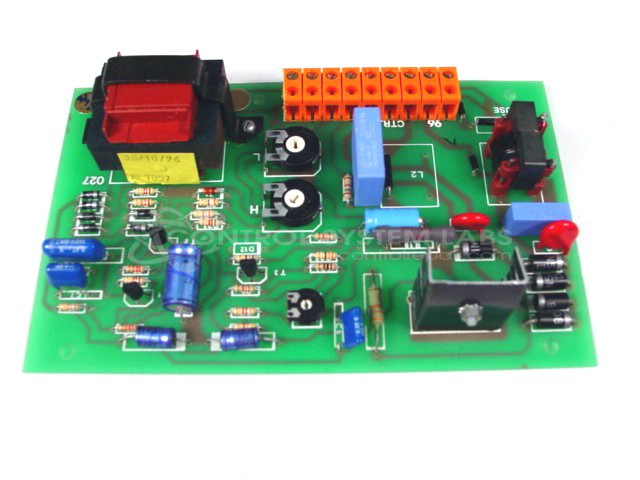

Unigraph (Uk) Limited CTR.631 DC Motor Board

Repair

Repair Price: $ 432.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/49816/image_1920?unique=e1403d0
  • Condition

Purchase Price: $ 0.00 $ 0.00 432.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 31016
Product Overview: A DC motor control board that regulates the operation of direct current motors in industrial equipment. It manages motor speed and drive functions, operating from a 120V supply with onboard rectification. Commonly used in automated machinery and process control systems.
Category: DC Motor Controls
Manufacturer: Unigraph (Uk) Limited
Manufacturer Part Number: CTR.631

Common Failures

One known issue with this product is related to the power supply circuitry, specifically resulting in the blowing of the 120V supply fuse. This is typically caused by a shorted diode.

Repair Approach

The repair involves replacing the shorted diode. Standard repair practices ensure that the new component is properly installed and verified.

Testing & Quality

After diode replacement, the product undergoes testing, including a 30-minute burn-in period, to verify operation.

Service and repair your broken Unigraph (Uk) Limited part


We can repair your Unigraph (Uk) Limited model CTR.631 in our facility. Let our skilled technicians get your Unigraph (Uk) Limited back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
