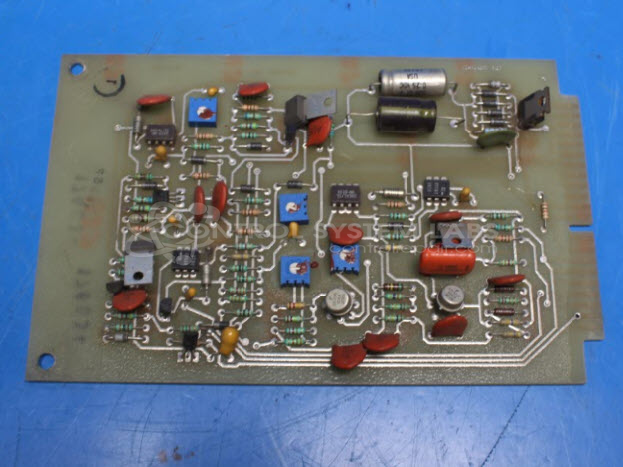

Union Carbide 677183 Rev B SCR Control Board for L-Tec HW-500 Welder

Repair

Repair Price: $ 772.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/68038/image_1920?unique=8485939
  • Condition

Purchase Price: $ 0.00 $ 0.00 772.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 84423
Product Overview: An SCR current control board for an industrial welding power supply, regulating weld output up to 500 amps via silicon-controlled rectifier phase control. Features timer-based firing circuits, operational amplifier conditioning, and an onboard 12V regulated power supply for stable current control in heavy-duty welding equipment.
Category: Welders
Manufacturer: Union Carbide
Manufacturer Synonyms: L-Tec
Manufacturer Part Number: 677183 Rev B

Common Failures

Typical issues observed with this product involve defects in the power supply section, particularly with capacitors, Zener diodes, regulators, timer ICs, and op-amps. These components are often addressed during the repair process.

Repair Approach

The repair process typically includes evaluation of defective components and, when necessary, creating specialized procedures and test setups. When feasible, calibration is conducted.

Testing & Quality

Upon completing repairs, the units undergo testing. This includes stabilizing the power supply section and, in some cases, running current tests up to 500 amps in welding power supply units.

Service and repair your broken Union Carbide part


We can repair your Union Carbide model 677183 Rev B in our facility. Let our skilled technicians get your Union Carbide back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
