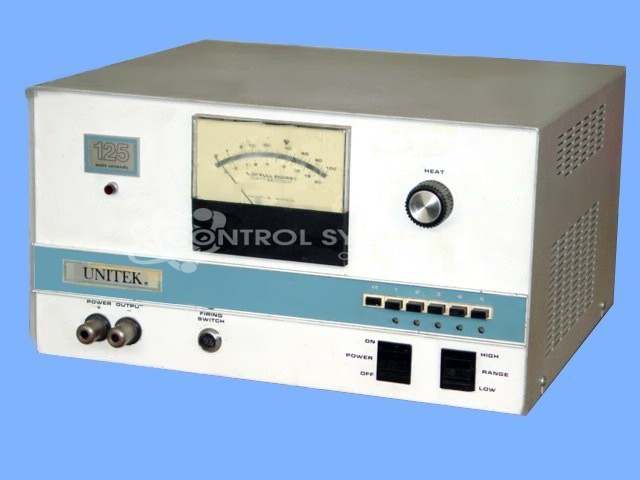

Unitek 1-163-01 Spot Welder Control

Repair

Repair Price: $ 2,464.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/82431/image_1920?unique=992215b
  • Condition

Purchase Price: $ 0.00 $ 0.00 2464.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 72089
Product Overview: A spot welder control power supply that regulates and delivers high-current output pulses to welding electrodes for resistance spot welding. It charges high-voltage electrolytic capacitors to produce controlled energy pulses and includes a low-voltage control supply and front-panel AC power indicator.
Category: Welders
Manufacturer: Unitek
Manufacturer Synonyms: Unitek Equipment MIYACHI
Manufacturer Part Number: 1-163-01

Common Failures

Common issues include control problems and intermittent output power. Reported symptoms have included the system not welding after activation and loss of power during operation. Other observed problems include the AC power indicator on the front panel not lighting and chassis damage.

Repair Approach

Repairs have involved replacing high voltage electrolytic capacitors in the output voltage charge circuit and rectifier diodes in the low voltage control power supply. The AC power indicator has also been replaced in some cases. Chassis damage has been addressed to restore proper function, and external components have been evaluated and replaced as needed.

Testing & Quality

Units undergo testing including verification of power supply voltages, output power pulse, and bench testing at various power levels. Repairs are performed to restore units to serviceable condition. Clean and reliable external component connections support optimal performance.

Service and repair your broken Unitek part


We can repair your Unitek model 1-163-01 in our facility. Let our skilled technicians get your Unitek back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
