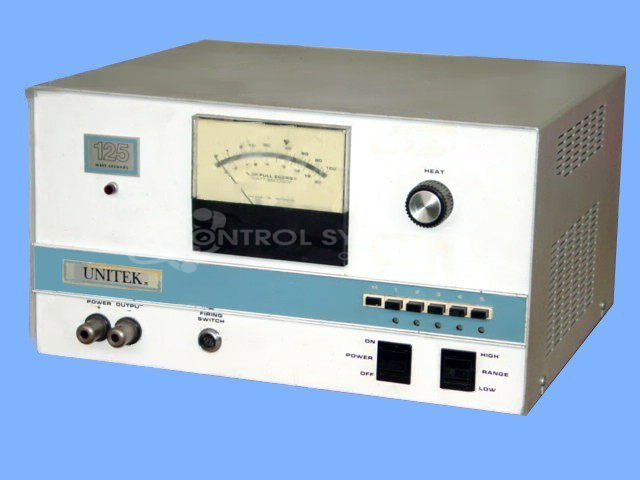

Unitek 1-163-02 Spot Welder Control

Repair

Repair Price: $ 2,464.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/28595/image_1920?unique=a58db06
  • Condition

Purchase Price: $ 0.00 $ 0.00 2464.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 9121
Product Overview: A capacitive-discharge spot welder control that stores energy in a capacitor bank and discharges it through SCRs to produce precise resistance welds. Featuring adjustable heat settings and charge-level control, it is used in precision joining of small metal parts and electronic components.
Category: Welders
Manufacturer: Unitek
Manufacturer Synonyms: Unitek Equipment MIYACHI
Manufacturer Part Number: 1-163-02

Common Failures

This product has experienced recurring issues, including intermittent circuit breaker trips, inoperative status, and faulty wire connections. Specific incidents have involved burnt resistors in the voltage divider and faulty connections in the capacitor bank.

Repair Approach

Repairs commonly involve component replacements such as SCRs, resistors, diodes, transistors, and capacitors. In some cases, push button assemblies, rocker switches, and power indicator lights have been repaired or replaced to restore functionality.

Testing & Quality

After repairs, units undergo a burn-in test to confirm functionality, with durations ranging from 4 to 18 hours. Testing typically verifies operations at 85-90% to confirm sustained performance under stress.

Service and repair your broken Unitek part


We can repair your Unitek model 1-163-02 in our facility. Let our skilled technicians get your Unitek back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
