Repair
Repair Price: $ 1,132.00
Purchase
CSL Part Number: 118619

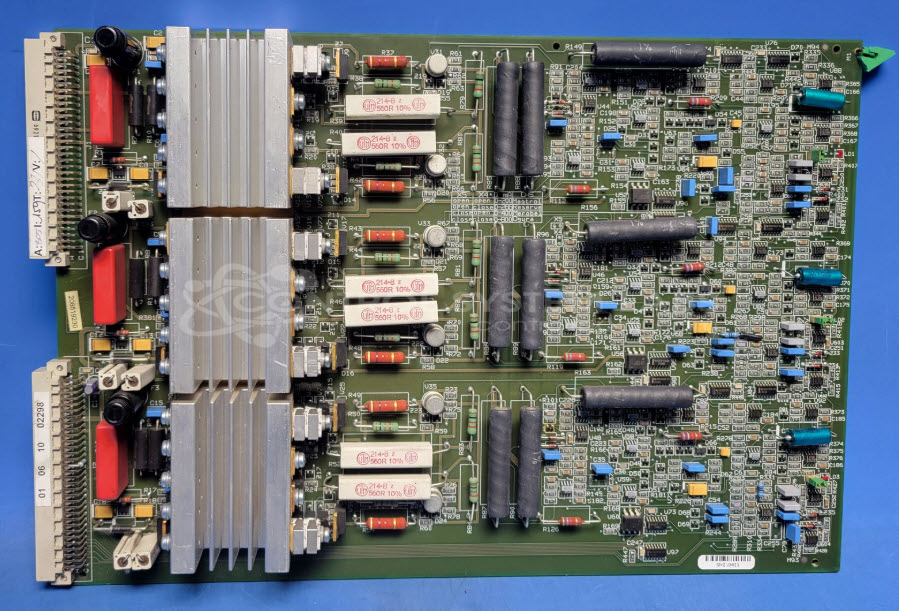

Product Overview: The X-Axis Control Board is a servo motor drive board used in Charmilles EDM machines to control X-axis positioning. It regulates motor speed and direction through MOSFET-based power switching circuits. This board is part of the 8512120 APMT XYZ positioning system and interfaces with the machine's overall motion control architecture. Common failure modes include shorted MOSFETs and blown fuses in the axis drive circuit, typically caused by power transistor failures affecting components V27, D12, U28, and U73.
Category: Servo Controls
Manufacturer: Unknown

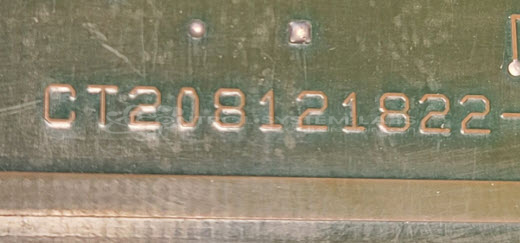

Manufacturer Part Number: CT208121822

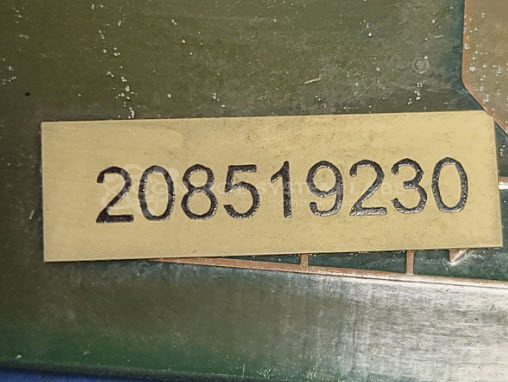

Also Known As(AKA): 208519230
Can only do partial repairs when practical. Final testing on your machine.
Common Failures
Units submitted for repair may exhibit issues with the X-Axis not functioning, often accompanied by visible damage such as a burn spot and a blown fuse. Evaluation may reveal failed components such as transistors, diodes, or capacitors. The extent of failure is determined during inspection and testing.
Repair Approach
The repair process typically involves replacing defective components identified during evaluation. Additional components may be replaced as part of the repair based on technician findings. All repaired units undergo diagnostic testing to verify proper operation before return.
Testing & Quality
Each repaired unit is tested to verify functionality and reliability. Technicians confirm that replaced components are operating correctly. Testing methods are based on available equipment and the nature of the unit. Repaired items are covered under CSL's standard warranty policy as documented in our Terms & Conditions.
Limited Repair
The Unkown part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Unkown part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
