Repair
Repair Price: $ 344.00
Purchase
CSL Part Number: 105476

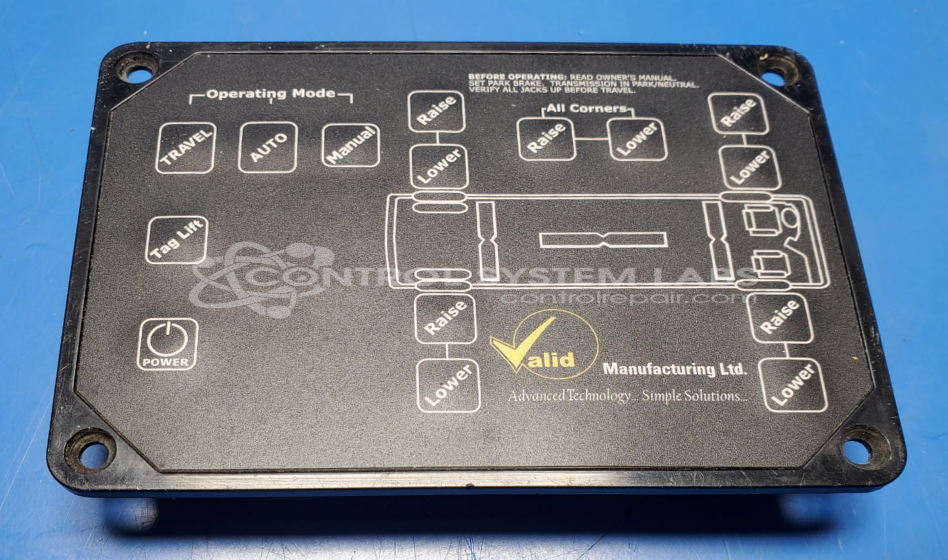

Product Overview: The VTL02A009-5 is a microprocessor-based RV leveling system keypad controller manufactured by Valid. It interfaces with Lippert leveling systems to provide automatic and manual leveling control for recreational vehicles with air suspension, including tag axle configurations. The unit monitors park brake and ignition inputs, displays system status via indicator lights, and enters travel mode when vehicle motion is detected. It features multiple control buttons for leveling operations and communicates via CANBus with leveling sensors and actuators.
Category: Operator Interface
Manufacturer: Valid
Manufacturer Part Number: VTL02A009-5
Also Known As(AKA): Level Controller, AIR w/TAG, MC
Often used with Lippert Leveling Controls
Common Failures
Units have shown a consistent issue with entering travel mode unintentionally, which may be related to circuit board condition affecting power traces. Another common problem includes the unit's inability to properly detect and display park brake input status, which can contribute to fault conditions even when some functions appear to operate normally.
Repair Approach
Repairs typically involve removing the keypad and partially disassembling the unit to access areas of the circuit board that require attention. Standard procedures may include addressing power trace issues and repairing keypad traces as needed. In some cases, snap domes require replacement to restore functionality. Additional steps are taken to verify the integrity of inputs such as the park brake.
Testing & Quality
After repair, testing is performed to verify basic power functions and confirm that inputs reach the microprocessor correctly. Outputs are checked as part of the standard repair process. Units are tested for power-on functionality and basic input verification to ensure operational buttons respond appropriately. Depending on the unit's condition and the scope of repair, further evaluation may be recommended to address concerns beyond the repaired components.
Service and repair your broken Valid part
We can repair your Valid model VTL02A009-5 in our facility. Let our skilled technicians get your Valid back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
