Repair
Repair Price: $ 360.00
Purchase
CSL Part Number: 87277

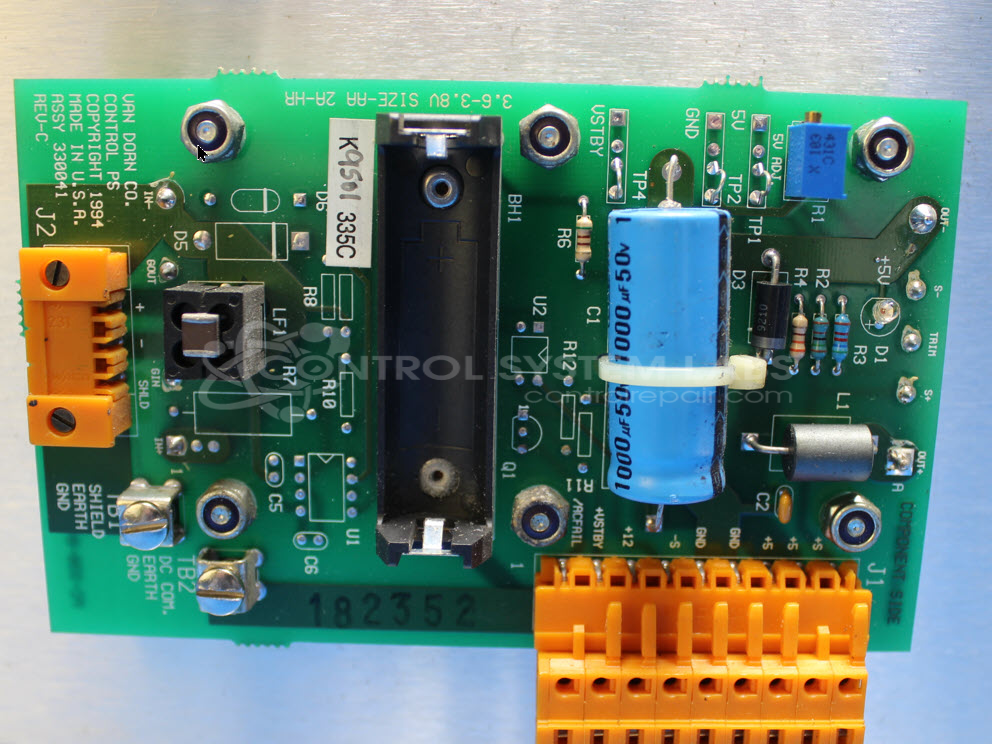

Product Overview: The 330041 Rev C is a power supply board designed for Van Dorn's Pathfinder PLC system. It converts 24VDC input to regulated 5VDC output using a VI-2W0-EY DC-DC converter module rated at 10A and 50W. This board provides essential power distribution for Pathfinder PLC controllers commonly found in plastic injection molding machines and other automated manufacturing equipment.
Category: Control Board
Manufacturer: Van Dorn
Manufacturer Part Number: 330041 Rev C
Series: Pathfinder PLC
Common Failures
One common issue reported is DC-DC converter malfunction, typically characterized by blown fuses and shorts at the converter's input. These symptoms often indicate a defective component within the power module.
Repair Approach
The diagnostic process involves testing individual components to identify shorts or malfunctions. In cases of converter failure, the faulty component is removed and replaced to restore functionality. Careful inspection is conducted to verify that accompanying components, such as diodes, are functioning correctly.
Testing & Quality
Post-repair, units undergo testing to verify proper operation. This includes applying standard input voltages and confirming the correct output under specified load conditions. Testing is performed to verify that repairs meet quality standards before units are returned.
Service and repair your broken Van Dorn part
We can repair your Van Dorn model 330041 Rev C in our facility. Let our skilled technicians get your Van Dorn back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
