Repair
Repair Price: $ 640.00
Purchase
CSL Part Number: 75946

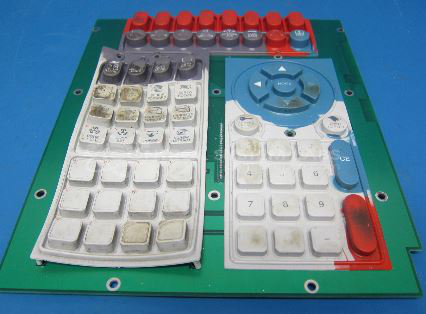

Product Overview: The Pathfinder 2500 Operator Keypad Assembly is a membrane-style control interface used in Van Dorn/Demag injection molding machines. It provides operator input for machine functions through tactile buttons in various sizes including 18mm and 20mm square configurations, plus directional control pads. This assembly is part of the Pathfinder Operator Station series and features printed button legends specific to the 2500 model, distinguishing it from the similar 5000 series keyboard. Common button sizes include 10mm, 13mm, 18mm, and 20mm configurations for different control functions.
Category: Operator & Control Panels
Manufacturer: Van Dorn/Demag
Manufacturer Synonyms: Sumitomo DEMAG
Alternate Manufacturer Names: ITT
Manufacturer Part Number: 251547
Series: Pathfinder Operator Station
Other Synonyms: ITT
Common Failures
The product has been reported with several common issues, including blank or black screens, buttons that are hard to push or do not function correctly, such as the "Help" button sticking, and keys not registering inputs properly. These problems are often due to worn-out buttons, defective components, or corrosion.
Repair Approach
Repairs typically involve the replacement of defective buttons and the cleaning of corrosion from contacts. For sticky or unresponsive buttons, old components are removed, and new button contacts are installed. Any underlying corrosion is cleaned to restore proper function. Repairs address buttons so they operate with the correct resistance and communicate effectively with the system.
Testing & Quality
All units undergo thorough testing post-repair to verify functionality. This includes resistance checks for each button and comprehensive testing for effective communication with systems. Products are assessed through burn-in tests to verify that repaired units meet quality standards and perform reliably before return.
Service and repair your broken Van Dorn/Demag part
We can repair your Van Dorn/Demag model 251547 in our facility. Let our skilled technicians get your Van Dorn/Demag back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
