Repair
Repair Price: $ 694.00
Purchase
CSL Part Number: 35036

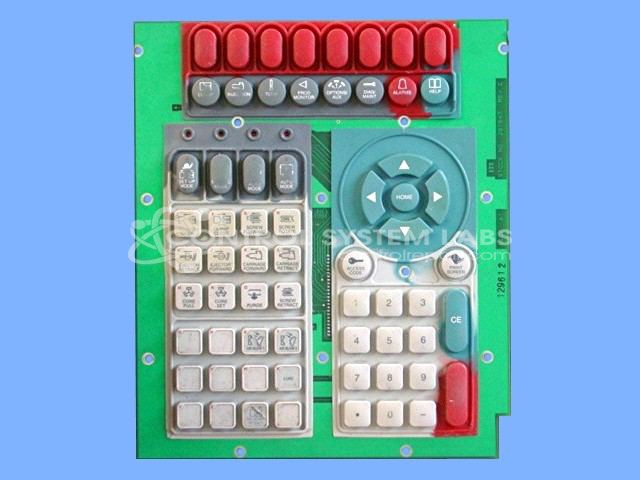

Product Overview: The Pathfinder 5000 Operator Keypad Assembly is a membrane-style control panel used in Van Dorn/Demag (also ITT) injection molding machines. It provides tactile button input for machine operators to navigate screens, select modes, and control molding parameters. The assembly features multiple button sizes including 18mm and 20mm square contacts and smaller rounded rectangle contacts. Common failures include corrosion of internal foil contacts, dirt accumulation beneath buttons, and loss of tactile response requiring individual button contact replacement. Proper functionality is verified by measuring button resistance below 100 ohms when pressed.
Category: Operator & Control Panels
Manufacturer: Van Dorn/Demag
Manufacturer Synonyms: Sumitomo DEMAG
Alternate Manufacturer Names: ITT
Manufacturer Part Number: 251547
Series: Pathfinder Operator Station
Also Known As(AKA): 33001240
Other Synonyms: ITT
Repair price is for contact repair. Torn membrane replacement to be quoted after evaluation.
Common Failures
Common issues with the keypad include malfunctioning buttons due to corrosion on the button contacts, dirt accumulation, and general wear. Symptoms often include buttons that are unresponsive, difficult to press, or not entering the desired mode when pressed.
Repair Approach
Repairs typically involve cleaning oxidation and corrosion from button contacts, replacing defective buttons, and ensuring structural integrity. In cases where cleaning is insufficient, buttons may be replaced to restore functionality.
Testing & Quality
After repairs, testing is conducted to verify that the keypad operates correctly. This includes resistance testing and functionality tests using multimeters and test fixtures to confirm proper button performance. Each repair is reviewed by personnel to ensure quality.
Service and repair your broken Van Dorn/Demag part
We can repair your Van Dorn/Demag model 251547 in our facility. Let our skilled technicians get your Van Dorn/Demag back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
