Repair
Repair Price: $ 4,760.00
Purchase
CSL Part Number: 23140

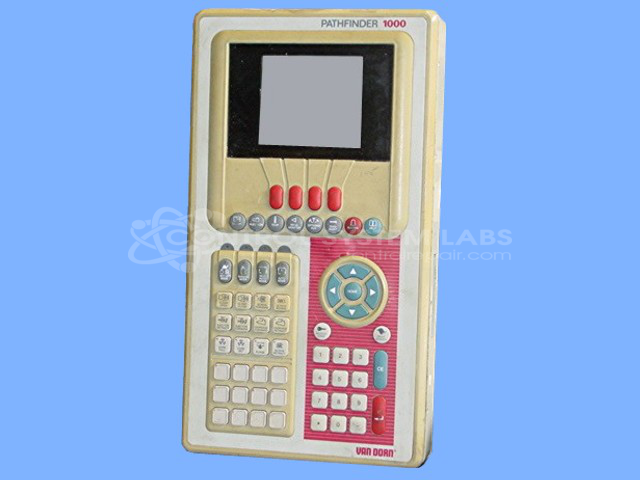

Product Overview: The Pathfinder 1000 Operator Station is a human-machine interface (HMI) used with Van Dorn/Demag plastic injection molding machines. It features a 320x240 pixel graphic LCD display, membrane keypad with tactile switches, and a Motorola 68HC000 processor. The unit communicates with molding machine controllers to provide operational control, parameter adjustment, and system monitoring. It operates on 12VDC and 5VDC internal power rails and includes SRAM memory modules for program and data storage.
Category: Operator & Control Panels
Manufacturer: Van Dorn/Demag
Manufacturer Synonyms: Sumitomo DEMAG
Alternate Manufacturer Names: VAN DORN
Manufacturer Part Number: 330003R
Series: Pathfinder Operator Station
Also Known As(AKA): 1000 VAN DORN
Other Synonyms: VAN DORN
Common Failures
The most frequent issues reported with this product involve the LCD display, including display anomalies, readability concerns, and failure to power on. Problems such as intermittent connectivity issues and backlight-related concerns have also been observed. Additionally, some cases involved keypad and processor connection issues causing operational interruptions.
Repair Approach
Repairs may involve replacing defective LCD displays and addressing backlight system concerns. Display and backlight system adaptations, including connector replacements and adjustments, may be performed to improve contrast and performance. In certain instances, processor connections and solder joints are re-worked to resolve poor connections. Fans and supporting components such as capacitors and resistors may also be replaced to enhance unit stability. When processors and memory modules indicate faults under testing, replacements and soldering techniques may be applied to maintain terminal connections.
Testing & Quality
Post-repair, testing is conducted to verify functionality. This may include operational testing under load and connection verification with test equipment. Units are evaluated to ensure they meet performance standards, including input functionality and communication capability.
Limited Repair
The Van Dorn/Demag part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Van Dorn/Demag part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
