Repair
Repair Price: $ 594.00
Purchase
CSL Part Number: 58603

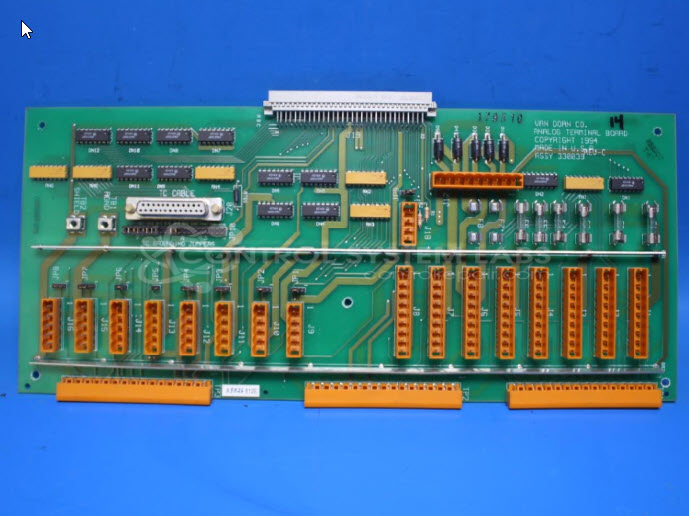

Product Overview: The Analog Terminal Board (Van Dorn/Demag 330039 REV C) is an interface board used in Pathfinder PLC systems for plastic injection molding machines. It provides analog signal conditioning and distribution for temperature control zones, routing thermocouple inputs and heater control signals between the PLC and barrel heating systems. The board features multiple resistor networks, diode arrays, fused circuits, and D-sub connectors to handle multi-zone temperature monitoring and control in injection molding applications.
Category: Control Board
Manufacturer: Van Dorn/Demag
Manufacturer Synonyms: Sumitomo DEMAG
Manufacturer Part Number: 330039 REV C
Series: Pathfinder PLC
We have a test fixture and procedure to service and repair this card.
Common Failures
Units may experience issues with heating zones not functioning correctly. Center and rear heat zones have been reported to fail due to component-level concerns such as connectors and fuses, as well as physical damage including shorted traces or corroded fuses.
Repair Approach
Repairs may involve replacing damaged components such as connectors and fuses, and addressing physical damage including bad traces. Preventative maintenance can include cleaning components, applying protective solutions to prevent corrosion, and replacing potentially compromised components such as jumper blocks and fuses.
Testing & Quality
After repairs, comprehensive diagnostic testing is performed to evaluate functionality. This includes testing resistors, fuses, diodes, and connections using tools such as ohmmeters and multimeters. All components undergo quality checks before the unit is returned.
Service and repair your broken Van Dorn/Demag part
We can repair your Van Dorn/Demag model 330039 REV C in our facility. Let our skilled technicians get your Van Dorn/Demag back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
