Repair Price: $ 594.00
Purchase
CSL Part Number: 70806

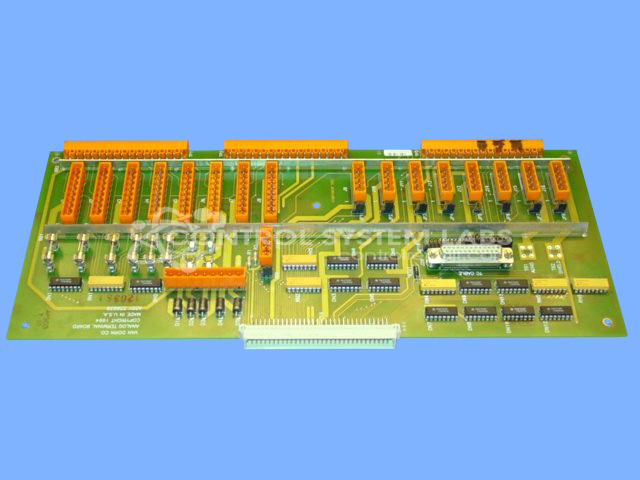

Product Overview: The Analog Terminal Board (Van Dorn/Demag 330039 Rev E) is an interface module for the Pathfinder PLC series used in Van Dorn/Demag plastic injection molding machines. It conditions and converts analog signals from transducers, thermocouples, and RTD temperature sensors into digital data for the PLC. The board features multiple fused input channels, typically including eight fuse positions (F1-F8) rated at 2.5A, and supports various sensor types for monitoring barrel temperatures, pressure transducers, and process variables in molding operations.
Category: Control Board
Manufacturer: Van Dorn/Demag
Manufacturer Synonyms: Sumitomo DEMAG
Manufacturer Part Number: 330039 REV E
Series: Pathfinder PLC
We have a test fixture and procedure to service and repair this card.
Common Failures
Several recurring issues have been identified across the repair history of this product. Common problems include component-level issues such as fuse failures, corrosion, solder joint defects, and contamination from dirt or oil. In some cases, reading accuracy issues with transducer channels or thermocouples have been documented. Burn damage has also been observed in certain units.
Repair Approach
The repair process typically involves component-level replacement and cleaning as needed. Diagnostic testing is performed to identify faulty components. Repairs are conducted to address specific findings such as defective solder joints or contamination. Each unit is evaluated individually, and repair work is based on the specific findings from that evaluation.
Testing & Quality
Testing procedures are employed following repair work. These may include functional testing under various conditions to verify operation. Units are tested according to CSL standards before being returned to service.
Service and repair your broken Van Dorn/Demag part
We can repair your Van Dorn/Demag model 330039 REV E in our facility. Let our skilled technicians get your Van Dorn/Demag back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
