Repair
Repair Price: $ 932.00
Purchase
CSL Part Number: 86472

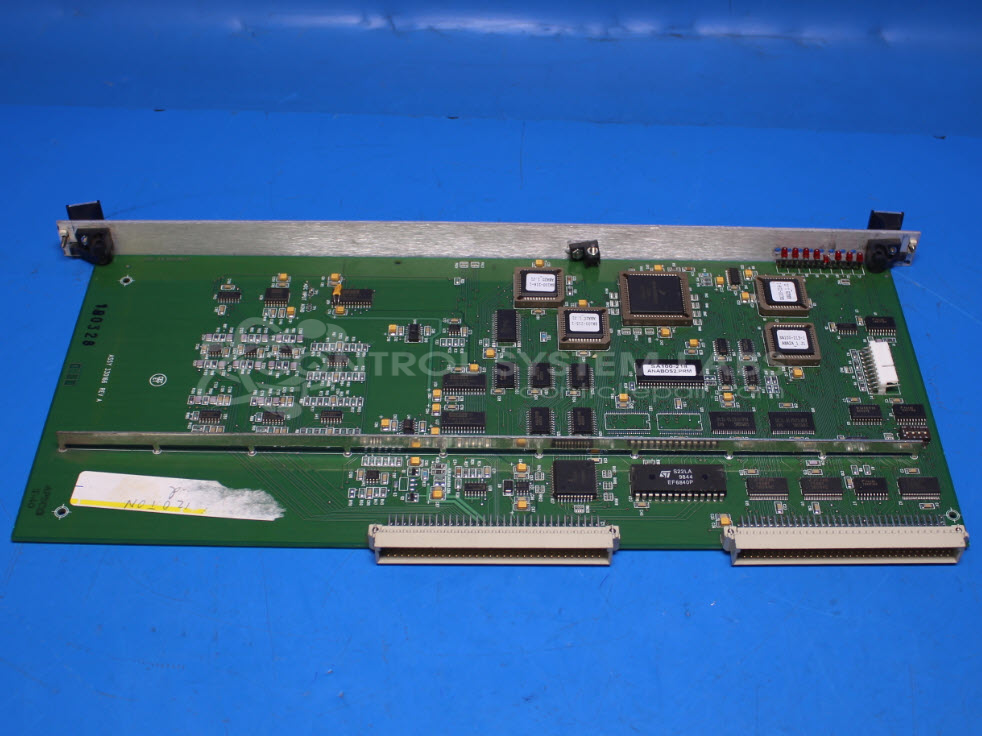

Product Overview: The ANA2 Analog Terminal Board is an I/O interface module for Van Dorn/Demag Pathfinder series injection molding machine controllers (models 2500, 3000, 4500, and 5000). It provides analog input and analog output channels for monitoring and controlling process variables such as clamp position, injector position, and hydraulic pressure. The board connects to the Pathfinder PLC system and enables real-time feedback and precision control of molding machine functions.
Category: Control Board
Manufacturer: Van Dorn/Demag
Manufacturer Synonyms: Sumitomo DEMAG
Manufacturer Part Number: 330166 REV A
Series: Pathfinder PLC
Common Issues
This product is occasionally returned for evaluation. In some cases, diagnostic testing does not identify a specific fault. When appropriate, components may be replaced based on technical assessment.
Repair Approach
When no fault is detected during initial evaluation, the unit may undergo additional testing. Component replacement may be recommended depending on the findings and the unit's condition.
Testing & Quality
Units are tested according to CSL procedures. Testing may include burn-in and functional verification. Results are documented and communicated to the customer as part of the evaluation or repair process.
Repair your broken Van Dorn/Demag part
We can repair your Van Dorn/Demag model 330166 REV A .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
