Repair
Repair Price: $ 4,850.00
Purchase
CSL Part Number: 33080

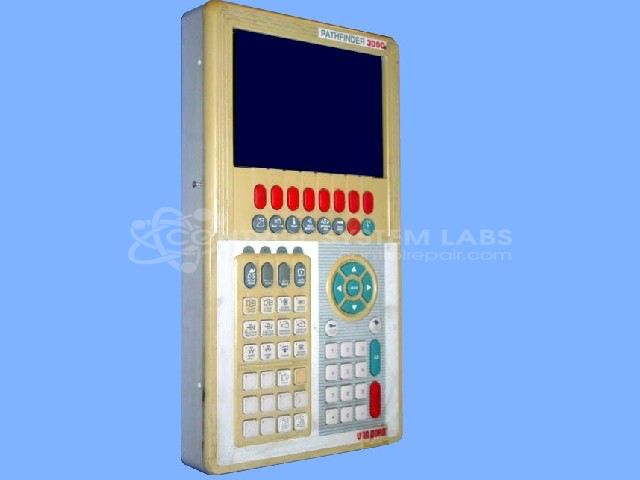

Product Overview: The Pathfinder 3000 Operator Station is a human-machine interface (HMI) designed for Van Dorn/Demag injection molding machines. It features a 10.4-inch electroluminescent or LCD display with VGA resolution (640x480 pixels), membrane-style keypad with matrix button layout, and 24VDC power input with internal 12V and 5V supplies. The unit includes dual cooling fans, a removable memory card slot, and serial communication capability for machine control and monitoring. Common applications include Van Dorn HT series injection molding presses where operators set parameters, monitor production, and control machine functions. The display driver uses a CHIPS F65545B2 VGA controller, and the backlight can be converted from CCFL to LED for improved reliability and brightness control.
Category: Operator & Control Panels
Manufacturer: Van Dorn/Demag
Manufacturer Synonyms: Sumitomo DEMAG
Manufacturer Part Number: PATHFINDER 3000
Series: Pathfinder Operator Station
Keyboard or display replacement is additional
Common Failures
Common issues with this product include screen burn-in, blank screens, and unresponsive buttons. Other problems include defective components such as video controllers, MOSFETs, and DC fans. Water damage has also been reported, leading to short circuits and component failures.
Repair Approach
Repairs often involve replacing defective components like the screen, LCD backlight, buttons, and other critical electronic parts. Adjustments are made to improve the backlighting by converting to LED in some cases, enhancing screen visibility and reliability. Replacing oxidized or malfunctioning button contacts is also frequently necessary.
Testing & Quality
Diagnostic and burn-in testing is conducted to verify the unit functions correctly after repairs. Testing typically involves running the device in various modes for extended periods and verifying components and features work as expected. Level 5 Testing verifies functionality and reliability before the unit is returned.
Service and repair your broken Van Dorn/Demag part
We can repair your Van Dorn/Demag model PATHFINDER 3000 in our facility. Let our skilled technicians get your Van Dorn/Demag back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
