Repair
Repair Price: $ 584.00
Purchase
CSL Part Number: 47940

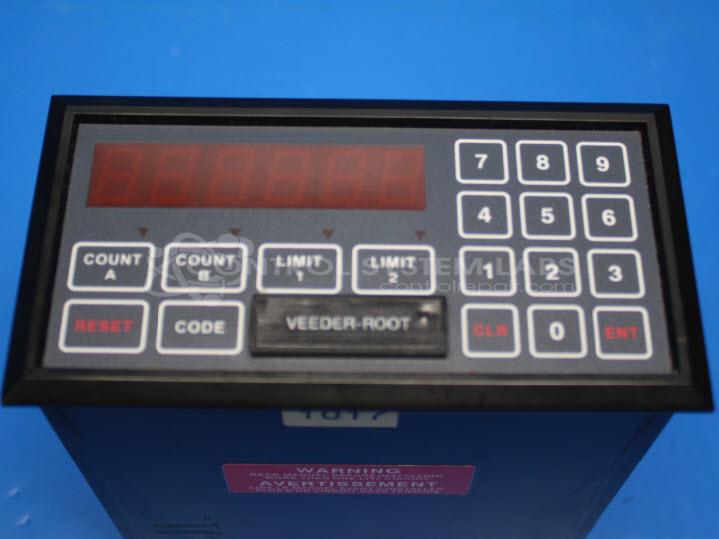

Product Overview: The Veeder Root 7910 Predetermining Counter with Comm is a programmable dual-channel counter with integrated relay outputs and serial communication capability. It accepts quadrature encoder inputs and can count up or down based on signal phasing. Common applications include material handling, web processing, and cut-to-length systems. The unit features membrane keypad controls, dual preset counters (Count A and Count B), count inhibit and reset inputs, security lockout functions, and onboard diagnostics including NV RAM and RAM self-tests. It operates on 115/230 VAC and includes NO/NC relay contacts for controlling downstream equipment when preset counts are reached.
Category: Counters
Manufacturer: Veeder Root
Manufacturer Part Number: 791086-220
Series: 7910 Counter
Keypad replacement, if required, is quoted after evaluation.
Common Failures
Common reported issues include counting buttons not functioning, button wear, and inaccurate counting. Specific failures may include non-responsive Count A buttons and counters that begin counting backwards.
Repair Approach
Repairs may involve cleaning or replacing key components such as the membrane keypad and the zebra strip, which interfaces the keypad and circuit board. In cases of worn buttons, replacement of the keypad may be recommended to restore functionality.
Testing & Quality
Repaired units undergo diagnostic testing, including verification of count inputs and keypad functions. Units are subjected to burn-in tests and operational testing to confirm functionality before return.
Service and repair your broken Veeder Root part
We can repair your Veeder Root model 791086-220 in our facility. Let our skilled technicians get your Veeder Root back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
