CSL Part Number: 54234

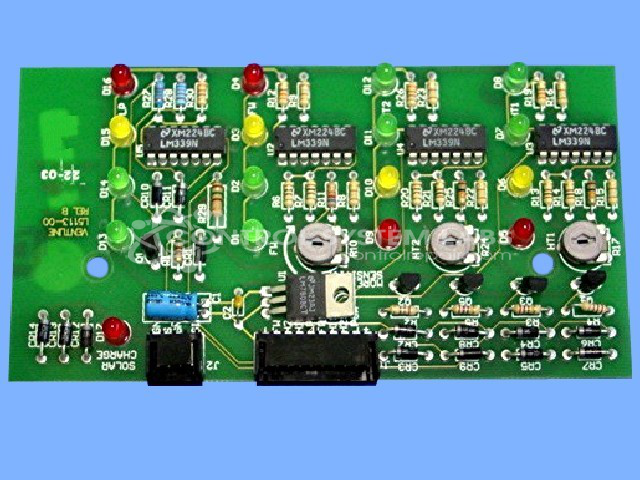

Product Overview: The Ventline L5113-00 RV Monitor Panel is a printed circuit board assembly used in recreational vehicles to display tank level status information. It monitors multiple holding tanks (fresh water, gray water, black water) and provides visual LED indication of their fill levels to the RV operator. The board features a voltage regulator circuit and tank sensor inputs, typically interfacing with existing RV tank probe systems. This panel is commonly found in motorhomes and travel trailers manufactured in the early to mid-2000s, including brands like Itasca.
Category: Operator Interface
Manufacturer: Ventline
Manufacturer Synonyms: Winnebago Industries Winebago
Manufacturer Part Number: L5113-00
Also Known As(AKA): L5113-03 P/N ON TAG
Use L5113-03 for correct Model Number when sending in for repair.
Common Failures
Common issues encountered with this unit include tank monitors failing to display correctly while the solar light remains functional. Other recurring problems involve defective or weakened transistors and voltage regulators, with particular focus on the PNP bipolar transistor. In some instances, this transistor has been found to have shorted or exhibited faulty behavior.
Repair Approach
Repairs typically involve the replacement of defective components such as the PNP bipolar transistor and voltage regulator when needed. Circuit board trace repairs are performed if physical damage is observed, such as broken traces affecting continuity. In certain cases, capacitors and weakened leads are also addressed.
Testing & Quality
Following repairs, testing is performed to verify restored functionality. This includes burn-in testing and validation against CSL procedures. Each unit undergoes inspection to confirm that components are operational and that the unit is free from residue or superficial damage.
