Ventline L5131-02 RV Monitor Panel
Repair
Repair Price: $ 404.00
Purchase
CSL Part Number: 100930

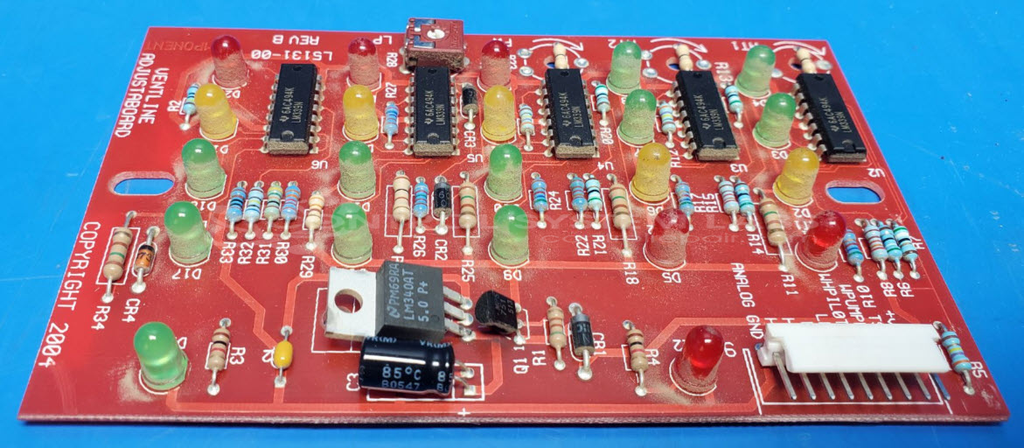

Product Overview: The Ventline L5131-02 is a monitor panel circuit board used in recreational vehicles to display holding tank levels (fresh water, gray water, black water) and battery charge status. It interfaces with resistive tank sensors and provides visual feedback through multiple LED columns indicating empty, 1/3, 2/3, and full levels for each tank. The board operates on 12-14VDC and uses LM339N quad comparator ICs to process sensor inputs, an MC7805 voltage regulator for internal 5V logic, and an MPS751 transistor for power control. It is typically installed in RV wall-mounted display assemblies such as the Ventline LA1071-00.
Category: Operator Interface
Manufacturer: Ventline
Manufacturer Synonyms: Winnebago Industries Winebago
Manufacturer Part Number: L5131-02
Limited Repair
The Ventline part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Ventline part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
