Repair
Repair Price: $ 1,000.00
Purchase
CSL Part Number: 27334

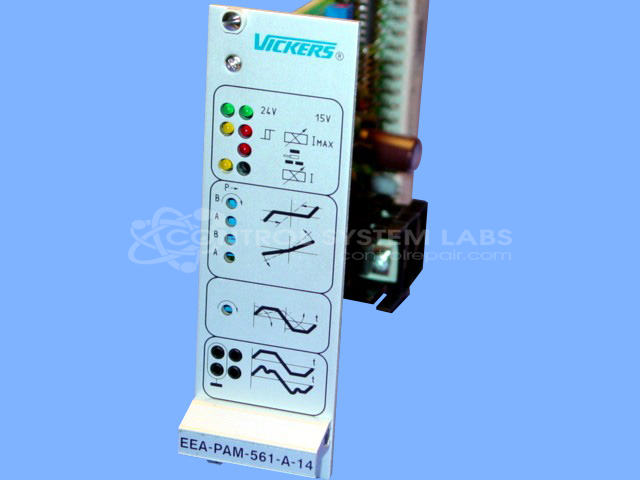

Product Overview: The Vickers EEA-PAM-561-A-14 is a power amplifier card designed to drive proportional hydraulic valves with integrated position control feedback. It operates as a closed-loop servo controller, comparing command signals (±10V or ±5V) with LVDT feedback to generate pulse-width modulated output current (typically 0-800mA) that precisely positions valve spools. Commonly used in injection molding machines to control ejector movements, it features front-panel adjustment potentiometers for gain and deadband, internal calibration trimmers for offset and feedback scaling, and diagnostic LEDs for power and fault indication. The card includes ±15V and ±12V regulated power supplies, quad and dual operational amplifiers for signal conditioning, Darlington output transistors, and a 555-based negative voltage converter.
Category: Valve Driver / Amplifier Card
Manufacturer: Vickers
Alternate Manufacturer Names: EATON Corporation
Manufacturer Part Number: EEA-PAM-561-A-14
Series: Power Amplifier for Proportional Valves
Other Synonyms: EATON Corporation
Service and repair your broken Vickers part
We can repair your Vickers model EEA-PAM-561-A-14 in our facility. Let our skilled technicians get your Vickers back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
