CSL Part Number: 71861

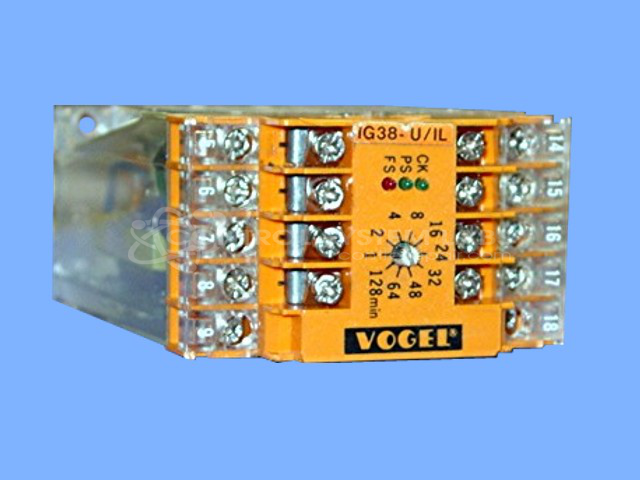

Product Overview: The Vogel IG38-U/IL is a DIN rail-mounted programmable timer designed for automated lubrication systems. It controls pump cycles with adjustable timing from 1 to 128 minutes, commonly used in industrial machinery requiring periodic lubrication such as conveyors, presses, and production equipment. The unit features relay outputs for pump control and solenoid activation, with monitoring capability for pressure switches. It operates on 24VDC input and is designed for panel-mount installation in centralized lubrication control applications.
Category: Timers
Manufacturer: Vogel
Manufacturer Synonyms: Willy Vogel AG
Alternate Manufacturer Names: Willy Vogel
Manufacturer Part Number: IG38-U/IL
Also Known As(AKA): IG 38
Other Synonyms: Willy Vogel
Common Failures
Some common issues identified in this product include the controller's inability to cycle the pump automatically when provided with the correct input voltage, potentially caused by a malfunctioning internal relay. There may also be problems with the timer component and pressure switch monitoring circuit.
Repair Approach
Repairs typically focus on replacing critical components such as relays and various capacitors to address potential failures within the circuit. However, some issues, such as those involving a pre-programmed microprocessor, may not be repairable due to the unavailability of replacement parts.
Testing & Quality
Diagnostic testing may identify defective components like the microprocessor, which can fail to execute timing functions correctly. When replacement microprocessors are not available, some units may be returned unrepaired. Co-checking procedures and additional testing are emphasized to ensure reliability in repair outcomes where feasible.
