CSL Part Number: 82248

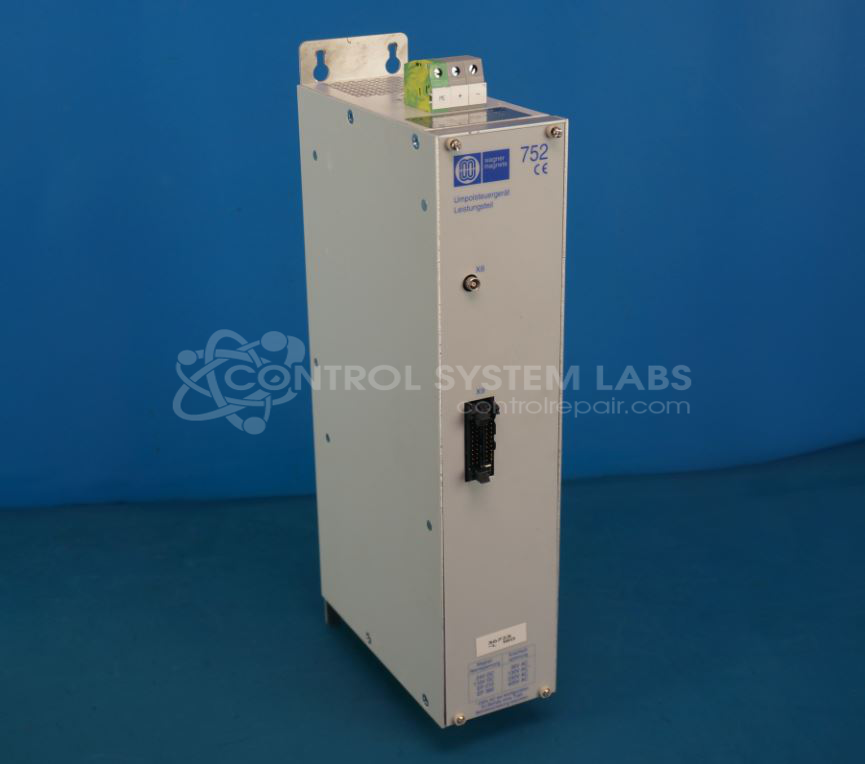

Product Overview: The Wagner Magnete 752-LT/EP60 is a power output module designed for magnetic chuck control systems. It functions as a DC power supply module that energizes electromagnetic chucks used in metalworking, grinding, and material handling applications. The module utilizes IGBT power switching technology (1200V/78A rated modules) with isolated gate drive circuits to convert AC input power into regulated DC output for controlling magnetic holding force. It is typically paired with a separate control unit that provides command signals and user interface. Common configurations include EP30 and EP60 variants, indicating different power ratings for various chuck sizes and holding force requirements.
Category: Magnetic Chuck Controls
Manufacturer: Wagner Magnete
Manufacturer Part Number: 752-LT/EP60
Series: Wagner Magnete Magnetic Chuck Controls
Also Known As(AKA): 752-LT EP60 III
Common Failures
Frequently reported issues with this product include fuse blowing, which is often linked to component failure. Particular components that may require attention include DC-DC converters, IGBT modules, and opto-isolators in the gate drive circuits. These failures can result in damaged traces that further affect device operation.
Repair Approach
Repairs typically involve replacing failed components, such as IGBT modules, DC-DC converters, and opto-isolators. In some cases, preventative replacement of capacitors may be conducted to support long-term reliability. Repair procedures also address any damage to traces within the gate drive circuits to restore proper function.
Testing & Quality
Following repairs, diagnostic testing is performed to verify that identified faults have been addressed. A burn-in test without load is conducted, and the product is verified to no longer draw excessive current at 120VAC input. Final functionality testing may be deferred to the customer if specific control units necessary for comprehensive testing are unavailable.
Service and repair your broken Wagner Magnete part
We can repair your Wagner Magnete model 752-LT/EP60 in our facility. Let our skilled technicians get your Wagner Magnete back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
