Repair
Repair Price: $ 1,746.00
Purchase
CSL Part Number: 104639

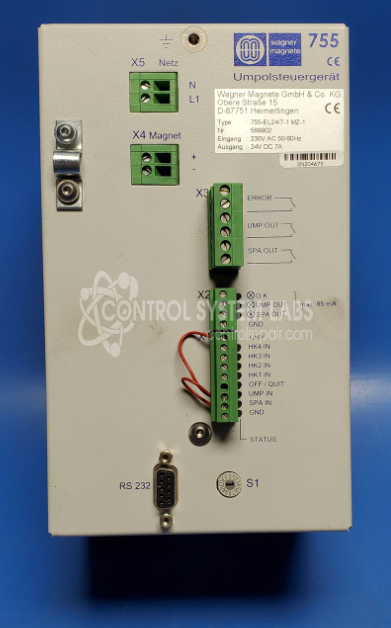

Product Overview: The Wagner Magnete 755 Series is an electromagnetic control unit designed for pole reversal control of permanent magnetic chucks used in metalworking and grinding operations. It provides switched DC power to energize and demagnetize magnetic workholding plates on machine tools. The unit features H-bridge output configuration with multiple power transistors, diagnostic status indicators, and thermal monitoring to protect against shorts and overcurrent conditions. It includes adaptive magnet teaching capability to configure for different chuck sizes and configurations. Common operating voltages include 24VDC control with higher voltage AC outputs for the magnet coils.
Category: Magnetic Chuck Controls
Manufacturer: Wagner Magnete
Manufacturer Part Number: 755-EL24/7-1 MZ-1
Series: Wagner Magnete Magnetic Chuck Controls
Also Known As(AKA): 589902
Pole reversal control unit 755
Common Failures
This product may experience issues such as status lights not illuminating or flashing, indicating various faults. Common symptoms include a flashing ground light, a lack of power, and fault codes during operations. Problems are often traced to defective transistors, resistors, and sensors.
Repair Approach
The repair process typically involves diagnostic testing to identify defective components, followed by the replacement of these components, such as transistors, thermistors, and resistors. In some cases, preventative replacement of related parts is conducted to support reliability. Mechanical issues like broken wires or hardware are also addressed as necessary.
Testing & Quality
After repairs, units undergo testing, including burn-in tests with load over multiple cycles to verify functionality. Each unit is checked to confirm it meets performance standards. Successfully repaired units function normally under specified test loads.
Service and repair your broken Wagner Magnete part
We can repair your Wagner Magnete model 755-EL24/7-1 MZ-1 in our facility. Let our skilled technicians get your Wagner Magnete back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
