Repair
Repair Price: $ 316.00
Purchase
CSL Part Number: 101478

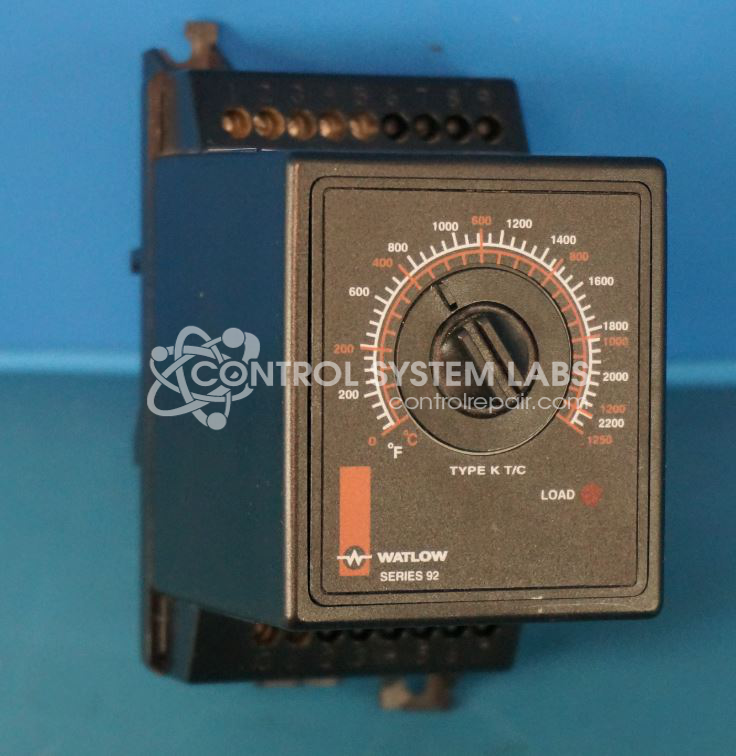

Product Overview: The Watlow 92 Series is a DIN rail-mounted ON/OFF analog temperature controller designed for heat control applications. It operates on 120VAC and features a Form C electromechanical relay rated at 5 amps for switching loads. The unit accepts standard thermocouple inputs and provides adjustable setpoint control with overtemperature limit protection. Commonly used in industrial heating systems, packaging equipment, and process control applications requiring reliable temperature regulation and safety shutdown capability.
Category: Temperature Control
Manufacturer: Watlow
Manufacturer Part Number: 92A3-1DJ1-0000
Brand: Watlow
Also Known As(AKA): 92 Series
Common Failures
This product commonly experiences issues with the over-temperature reset function not operating correctly. Specific failures include defective capacitors, a broken transformer, and a malfunctioning relay.
Repair Approach
The repair process typically involves replacing the faulty capacitors and relay, resoldering connections, and restoring the mechanical integrity of the transformer through gluing, epoxy, and soldering to reattach wires on its primary side. Calibration is then verified between 100-500 degrees Fahrenheit to ensure proper function.
Testing & Quality
Post-repair testing includes a burn-in test with a load, confirming calibration accuracy between 100-500 degrees Fahrenheit, and ensuring the alarm system is triggered at appropriate set points. This thorough testing supports optimal performance and reliability of the unit post-repair.
Service and repair your broken Watlow part
We can repair your Watlow model 92A3-1DJ1-0000 in our facility. Let our skilled technicians get your Watlow back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
