Repair
Repair Price: $ 375.00
Purchase
CSL Part Number: 103190

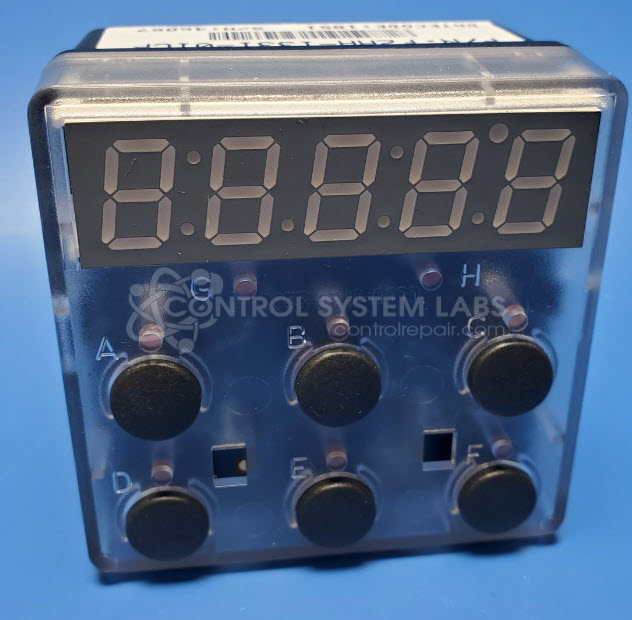

Product Overview: The Watlow F2HA Series MiniChef 2000 is a dual-input temperature controller designed for commercial cooking equipment. It accepts two thermocouple inputs (commonly type J) and provides solid-state relay outputs for heating control in applications ranging from 0 to 800 degrees Fahrenheit. The controller monitors temperature sensors and switches heating elements on or off to maintain setpoints. It is frequently used in coffee roasters, ovens, fryers, and other food service equipment requiring precise temperature regulation with multiple zones or backup sensing.
Category: Temperature Control
Manufacturer: Watlow
Manufacturer Part Number: F2HA-1331-01CP
Series: MiniChef 2000 Cooking Controller
Please include the make a model of the equipment this unit was removed from. We repair all variations of F2HA temperature controllers.
Common Failures
Commonly reported issues include error code 6 related to a thermal couple and no output from the Solid State Relay (SSR). The thermal couple error is often due to an open 20-ohm resistor in the circuit, while the lack of output from the SSR typically indicates a malfunction of the SSR component itself.
Repair Approach
When we receive a unit for evaluation, we inspect for the thermal couple issue, which may involve replacing a faulty resistor and ensuring proper soldering. For the SSR issue, the component may be replaced if diagnostics confirm the fault. In some cases, such as issues stemming from a failed EEPROM, repair may not be possible due to unavailable components. We can evaluate the item and provide a quotation before any repair work begins.
Testing & Quality
Repaired units undergo thorough testing, including burn-in tests under load conditions. Calibration verification is performed within specified temperature ranges. All repairs are verified by co-checking to ensure that quality standards are upheld before returning the unit to the customer.
Service and repair your broken Watlow part
We can repair your Watlow model F2HA-1331-01CP in our facility. Let our skilled technicians get your Watlow back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
